Functions and Differences Between L2 and L3 Switches

In modern computer networks, switches are a core device used for connecting and forwarding data packets. L2 (layer 2) switches and L3 (layer 3) switches are two common types, playing significant roles in networks. This article will introduce the functions and differences of L2 and L3 switches to help readers better understand these two key devices.


L2 Switches (Ethernet Switches)

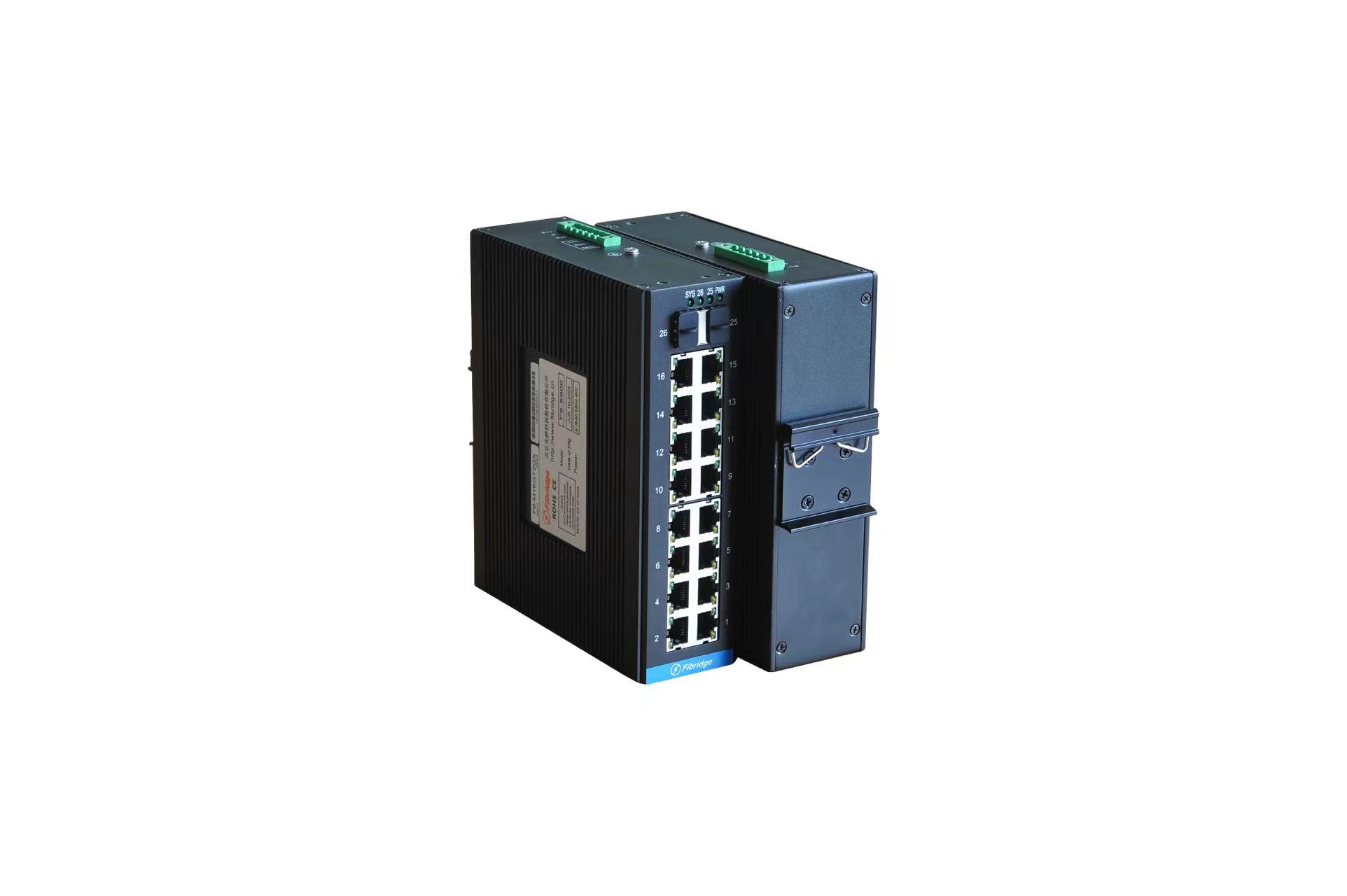

l2 switches

L2 switches operate at the second layer of the OSI model, namely the Data Link Layer. Their main function is to forward data packets based on MAC addresses (physical addresses). When a data packet arrives at an L2 switch, it checks the destination MAC address and consults the switch's MAC address table to find the corresponding interface, then forwards the data packet to that interface. As typical data center ethernet switch, L2 switches have the following characteristics:

1. Fast forwarding: Due to the use of hardware switching tables for forwarding decisions, L2 switches can achieve rapid data packet forwarding, providing high-performance LAN connectivity.

2. Broadcast and multicast support: L2 switches can forward broadcast and multicast packets to all connected devices, enabling multicast communication.

3. Simple configuration: L2 switches generally do not require complex configuration, are plug and play, suitable for small LANs.


L3 Switches (Routing Switches)

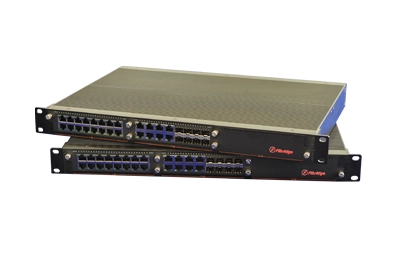

l3 switches

L3 switches, which belong to types of core switch access switch, operate at the third layer of the OSI model, namely the Network Layer. In addition to the functions of L2 switches, L3 switches can also forward data packets based on IP addresses. They maintain a routing table to determine the best path for data packets. When a data packet arrives at an L3 switch, it checks the destination IP address and consults the routing table to find the next hop IP address, then forwards the data packet to that IP address. L3 switches have the following characteristics:

1. Inter-subnet forwarding: L3 switches can achieve data forwarding between different subnets, allowing devices to communicate across subnets, suitable for large network environments.

2. Dynamic routing support: L3 switches support dynamic routing protocols, can automatically update the routing table based on network conditions, achieving flexible network topology.

3. Routing policies: L3 switches can forward data packets based on different routing policies, such as load balancing, access control, etc.


Differences Between L2 and L3 Switches

1. Functional hierarchy: L2 switches operate at the Data Link Layer, forwarding based on MAC addresses; while L3 switches operate at the Network Layer, forwarding based on both MAC and IP addresses. L3 switches have all the functions of L2 switches and can achieve data forwarding between different subnets.

2. Forwarding decisions: L2 switches use MAC address tables for forwarding decisions, while L3 switches use routing tables for more complex packet processing capabilities.

3. Network scale: L2 switches are suitable for small LAN environments, while L3 switches are more appropriate for large network environments, capable of inter-subnet data forwarding.

4. Configuration complexity: L2 switches usually require no complex configuration and are plug and play; L3 switches need IP address configuration and routing protocol settings, relatively more complex.


Conclusion

L2 and L3 switches are common types of network switch oem, playing essential roles in connecting different devices and forwarding data packets. L2 switches primarily operate at the Data Link Layer, forwarding data packets based on MAC addresses, suitable for small LAN environments. L3 switches, on the other hand, not only possess the functions of L2 switches but can also forward packets based on IP addresses, enabling inter-subnet communication, suitable for large network environments.

The choice of which switch to use depends on the scale and requirements of the network. If you need to connect devices within the same LAN and achieve rapid forwarding, L2 switches are a good choice. If you need data forwarding and network routing between different subnets, L3 switches will be more suitable for your needs.
