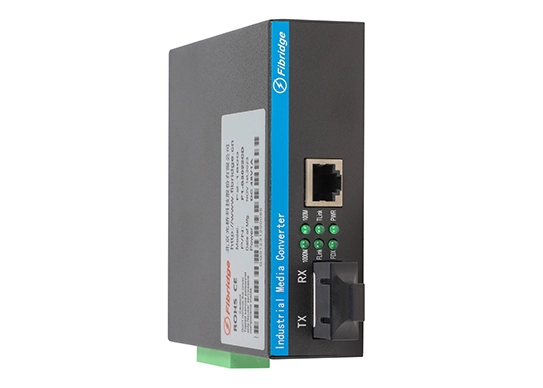

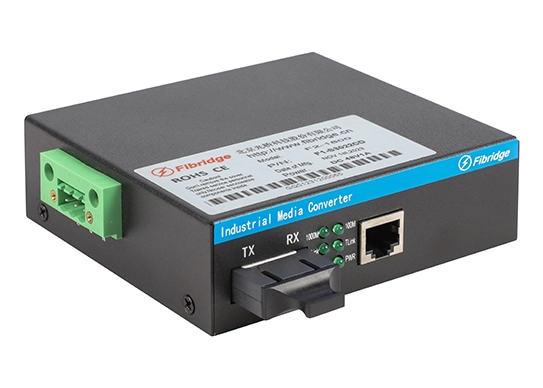

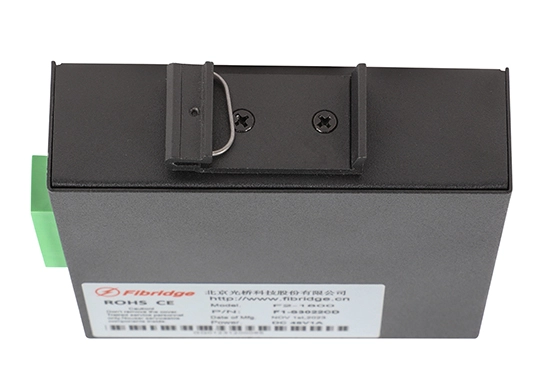

DIN-RAIL Unmanaged 1-Port 1000M Fx + 1-Port 1000M Tx Industrial Switch

Fibridge F6-1GT1GX series network management industrial switch is a high-performance ethernet access equipment developed by Beijing Fibridge. It has a 10/100/1000 mbps Ethernet interface and a 1000 mbps optical port. The device, built-in power module, provides 220V AC input or 12V DC input for options. The device operates at a temperature of -40℃~+85℃ Range and a humidity of %10~%90(No condensation. Fibridge F6 series is compact desktop design, small size, light weight, easy to be placed on desktop or in cabinet.

DIN-RAIL Unmanaged 1-Port 1000M Fx + 1-Port 1000M Tx PoE Industrial Switch Specification


Network Characteristics
Ethernet ProtocolIEEE802.3/802.3u/802.3x store and forward
Flow ControlIEEE802.3x flow control, back pressure flow control

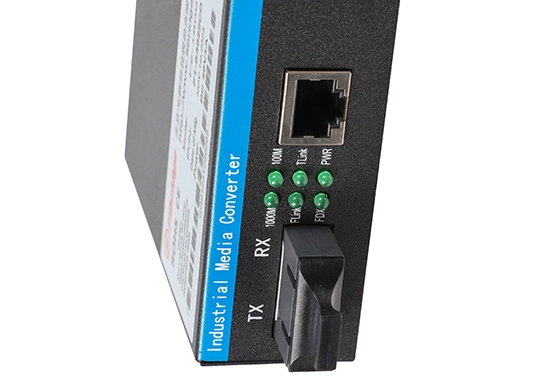

Network InterfaceOPT: 1000MBase-FX Single/multimode SC/FC/SFP/1*9

ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLANNo
MAC Addresses1K
Jumbo FrameNo
CacheNO
Exchange capacity4Gbps
Packet Forwarding Rate2.976Mpps
ManagementNo
Optical Characteristics
Optical InterfaceSC/FC/SFP/1*9(Optional)
Fiber Core CountSingle / Dual core transmission
Wavelength1310nm/1550nm(850nm)
Fiber ModeSingle Mode / Multimode
Environmental Characteristics
Temperature &; HumidityWorking temperature: -40ºC~80ºC

Storage temperature:-40ºC~85ºC

Working humidity:10%~90% RH No condensation

Storage humidity:5%~90% RH No condensation

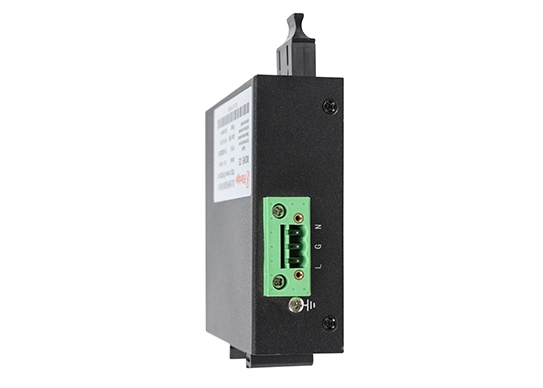

PowerAC 100-240V/50-60Hz Built-in switching power supply,

DC12V 1A External power supply
MTBF≥100000 hours
Mechanical Characteristics
Structural Dimension125× 108× 32mm
Product Weight0.5kg





 DIN-RAIL Unmanaged 1-Port 1000M Fx + 1-Port 1000M Tx Industrial Switch Features

  • Support IEEE802.3/802.3u/802.3x/802.3az forward mode.

  • To meet the requirements of reliable work in harsh electrical environment.

  • Support for Port auto-negotiation.

  • Support flow control.

  • Industrial & Modular design make the equipment reliable and flexible.

  • Support overload protection.

  • Anti-link protection is supported.

  • Support light hot plug.

  • Level of protection: IP40.

  • ISO9000 quality system certified.

  • Pass the Ministry of Public Security testing.

  • Obtain network qualification certificate.
