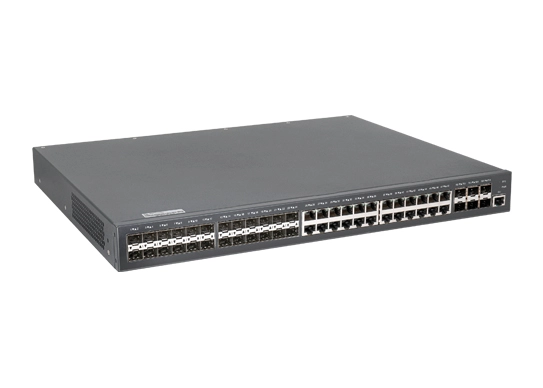

3s900tsx 24246 right 543
3s900tsx 24246 right 543
3s900tsx 24246 left 543

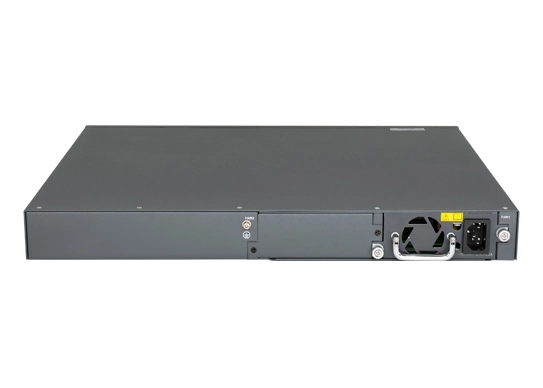

3s900tsx 24246 back 543

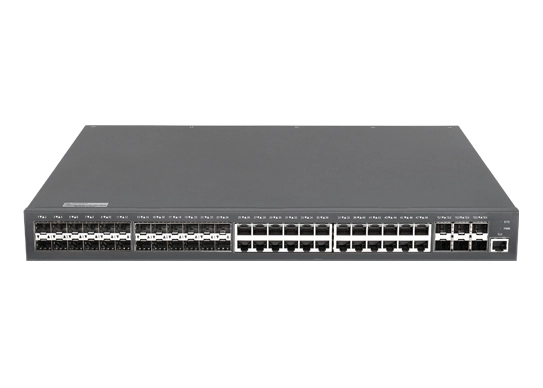

3s900tsx 24246 543

Managed 6*10G OPT and 24*Giga OPT +24*Giga Tx Switch F3S900TSX-24246

Fibridge F3S900TSX-24246 series managed switch is a high-performance Ethernet access equipment developed by Beijing Fibridge. It provides 24*1000Mbps SFP optical ports, 24*100/1000Mbps Tx ports and 6*10Gbps optical ports.

With corresponding network management software, it can realize the management functions such as Port Status Query, port configuration, configuration download, upload, system log and alarm record display. The series is layer3 switch, can be embedded with management module, providing Console and ethernet two types of management ports, supporting
Console,WEB,Telnet and SNMP management methods.

The device is built-in power module, providing 220VAC or -36~-72VDC power supply for options, supporting PoE. With 5 fans, the switch's working temperature is  -10ºC~+50ºC, humidity is 10%~90%(no condensation). The series is compact desktop design, small size, light weight, easy to place in desktop or cabinet.

Specifications of Managed 6*10G OPT and 24*Giga OPT +24*Giga Tx Switch F3S900TSX-24246

Network Characteristics
Ethernet ProtocolSupport IEEE802.3/802.3u/802.3x/802.3Z/802.3AB storage and forward
Flow ControlIEEE802.3x flow control, back pressure flow control
Network InterfaceOptical Port: 1000MBase-FX, 10GBase-FX SM/MM SC/FC/SFP optional
Ethernet Port: 10/100/1000MBase-T(X) auto adaptive Ethernet RJ45
VLAN802.1Q standard VLAN
MAC Addresses32K/64K
Jumbo FrameMax 12K
Cache64MB
Packet Buffer598G/5.98T
Packet Forwarding Rate252Mpps/342Mpps
ManagementWeb, SNMP V1/V2/V3, Console, Telnet
Optical Characteristics
Optical InterfaceSC/FC/SFP optional
Fiber Core CountSimplex/duplex
Wavelength1310nm/1550nm(850nm)
Fiber ModeSM/MM
Environmental Characteristics
Temperature & HumidityWorking temperature: 0ºC~50ºC
Storage temperature: -20ºC~70ºC
Working humidity:10%~90% RH No condensation
Storage humidity:5%~95% RH No condensation
PowerAC 100-240V/50-60Hz embedded switch power
DC-36~-72V  external DC power
MTBF≥100000 hours
Mechanical Characteristics
Dimension440 ×350× 44mm


Features of Managed 6*10G OPT and 24*Giga OPT +24*Giga Tx Switch F3S900TSX-24246

  • Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.1p storage and forward

  • MAC static configuration and dynamic learning, black hole MAC, IEEE802.1AE Macsec security control

  • Support VLAN,GVRP,QinQ,voice VLAN

  • Support STP/RSTP/MSTP/EAPS/ERPS

  • Support IGMPv1/2/3 and MLDv1/2 Snooping,PIM-SM,PIM-DM;

  • Support MCE function

  • Support IPv4/IPv6

  • Support static routing, RIP, OSPF, IS-IS dynamic routing, strategy routing

  • Support ECMP to realize load balance

  • Support manual tunnel, ISATAP tunnel, 6to4 tunnel

  • Support LDP protocol, MPLS VPN

  • Support  DHCP

  • Support L2/L3/L4 ACL,IPv4/IPv6 ACL,VLAN ACL;

  • Support QoS, flow classification, CAR flow limit/monitor/shaping, DSCP

  • Support safe visit control, prevent DDos, support RADIUS, BDTRCACS+

  • Support port isolation, port security, IP+MAC+ port bunding

  • Support IEEE802.1X certificate

  • Support uRPF

  • Support static/LACP link aggregation, OAM, ISSU;

  • Support ZTP zero touch configuration, Web/Console/Telnet/SSH2.0

  • Support SNMP V1/V2.V3;

  • Support TFTP upload and download management

  • Support RMON

  • Obtain network access  qualification certificate


Ordering Information of Managed 6*10G OPT and 24*Giga OPT +24*Giga Tx Switch F3S900TSX-24246

ModelPortManagement
F3S900TSX-2424624*10/100/1000MBase-T(X) auto-adaptive RJ45 ports
24*1000MBase SFP ports
6*10G SFP+ ports
Web,Telnet,Console
