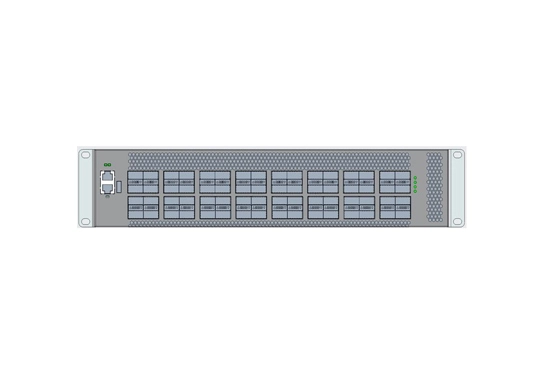

Managed 64 100G Qsfp28 Layer3 Switch F7E800C-64

FIBRIDGE F7E800C-64 series layer3 ethernet switch is high-performance switch constructed based on ethernet swtich IC CTC8180, support multiple types of port. With CentecOS system software, F7E800C-64 supports mainstream protocol standard and application program, for convenient deployment and management. F7E800C-64 series switches apply localization self-controllable design solutions, use 1U19 inch chassis, with fans for heat radiation. The chassis applies AC 100-240V or DC -40--60V power supply, supporting PoE. Its working temperature is 0ºC~+45ºC, humidity is %10~%90(no condensation).


Contact

Specification of Managed 64 100G Qsfp28 Layer3 Switch F7E800C-64

Network Characteristics
Ethernet ProtocolSupport IEEE802.3/802.3u/802.3x/802.3Z/802.3AB storage and forward
Flow ControlIEEE802.3x flow control, back pressure flow control
Network InterfaceOptical port:
100GE QSFP28 optical port
Ethernet port:
10/100/1000MBase-T(X)auto adaptive Ethernet RJ45 port
VLAN802.1Q standard VLAN
MAC Addresses122K
Jumbo FrameMax 9600Bytes
Cache128MB
Packet Buffer51.2Tbps
Packet Forwarding Rate38.09Gpps
ManagementWeb, SNMP V1/V2/V3, Console, Telnet
Optical Characteristics
Optical InterfaceSC/FC/SFP (optional)
Fiber Core CountSimplex/duplex
Wavelength1310nm/1550nm(850nm)
Fiber ModeSM/MM
Environmental Characteristics
Temperature & HumidityWorking temperature: 0ºC~45ºC
Storage temperature: -20ºC~70ºC
Working humidity:10%~90% RH No condensation
Storage humidity:5%~95% RH No condensation
PowerAC 100-240V/50-60Hz embedded switch power
DC-40--60V external power supply
MTBF≥100000 hours
Hardware Configuration
Expanding sub-cardNone
Serial port type1 RJ45 type serial port
Out-band management port1 RJ45 out-band management port
In-band management portSupport
USB port1 standard USB port


Features of Managed 64 100G Qsfp28 Layer3 Switch F7E800C-64

  • Support straight mode and storage-and-forward mode

  • Support complete L2/L3 characters

  • Support NVGRE/ VXLAN/ GENEVE,Tunnel Routing & Bridging

  • Support STP/RSTP/MSTP/ELPS/ERPS/VRRP

  • Support VLAN, Por/MAC VLAN, QinQ

  • Support static configuration and dynamic learning, black hole MAC

  • Support static routing, RIP, OSPF, BGP, IS-IS, URPF, equal value routing

  • Support VRF,cross VRF ARP divulge

  • Support ICMP, ECMP, PIM

  • Support LDP, VPWS, VPLS, L2VPN/L3VPN, MPLS

  • Support QoS, flow management, speed rate limit

  • Support PFC, DCBX

  • Support AAA,prevent DDos support RADIUS/TRCACS+, COPP

  • Support port isolation, port security, IP+MAC+ port bunding

  • Support mirror analysis, Elephant Flow detection, burst flow/dynamic delay monitor and analysis

  • Support ACL

  • Support iStack

  • Support IPv4/IPv6

  • Support based on IEEE802.1X flow control

  • Support Web, SNMP, CLI, Telnet, SmartConfg management

  • Support NVGRE, VXLAN, GENEVE, SDN, EVPN, IPFIX

  • Support LLDP

  • Support link aggregation, cross device link aggregation

  • Based on port and based on MAC 802.1x certificate

  • Obtain network qualification certificate


Ordering Information of Managed 64 100G Qsfp28 Layer3 Switch F7E800C-64

ModelParameterManagement
F7E800C-6464x 100GE QSFP28 portsWEB,SNMP,CLI


Products
Fibridge team is here to help!
If you have any product inquiries for Network Switches, please feel free to contact us.

Beijing Fibridge Co., Ltd.

Contact With Us
E-mail: steven@fibridge.com
Have a Questions? Call Us
8610-58858988

Related Data Center Switch

Managed 4 10G SFP+ and 48 1G SFP Optical Switch F5E300SX-484
Managed 4 10G SFP+ and 48 1G SFP Optical Switch F5E300SX-484
Managed 2 40G Qsfp+ and 8 25G SFP28 and 8 10G SFP+ and 16 1G Base-T Switch F5E300TXYQ-16882
Managed 2 40G Qsfp+ and 8 25G SFP28 and 8 10G SFP+ and 16 1G Base-T Switch F5E300TXYQ-16882

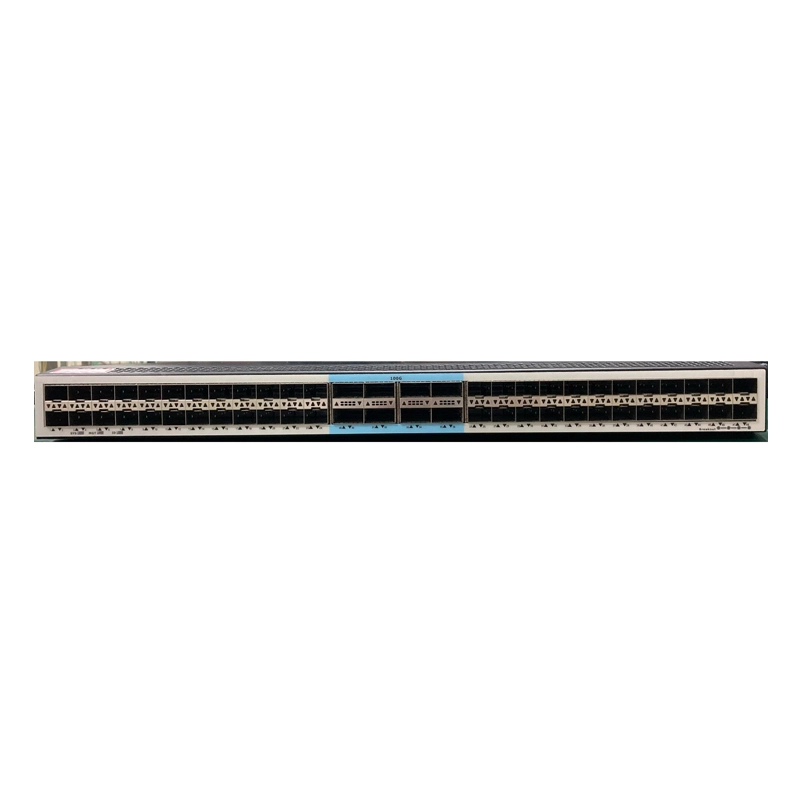

Managed 8 100G Opt and 48 25G Opt Switch F6E800YC-488
Managed 8 100G Opt and 48 25G Opt Switch F6E800YC-488

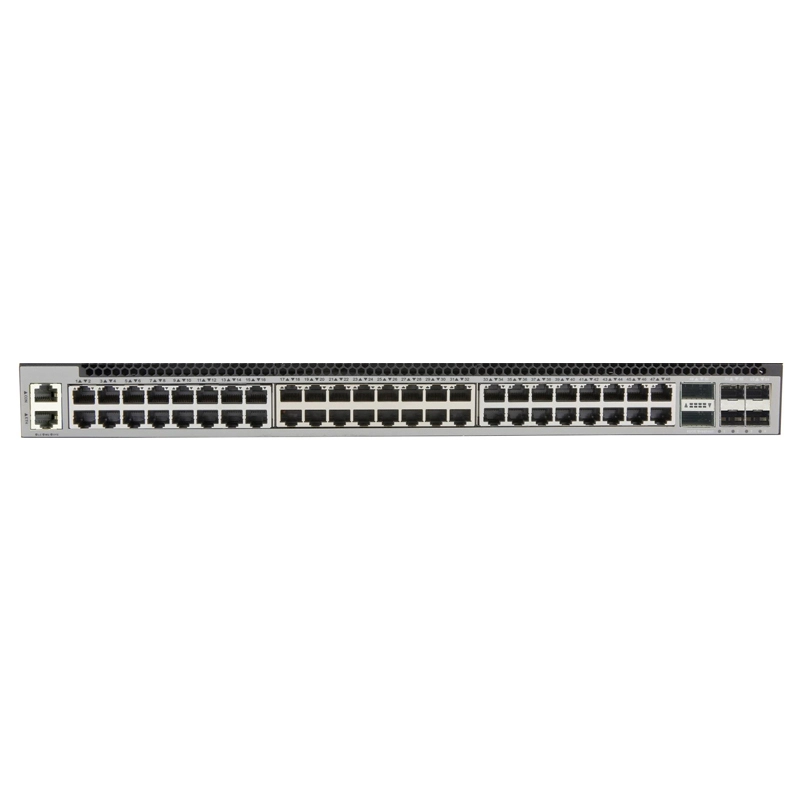

L3 Managed 2 40G Opt and 4 25G Opt and 48 1G Base-Tx Switch F5E310TYQ- 4842
