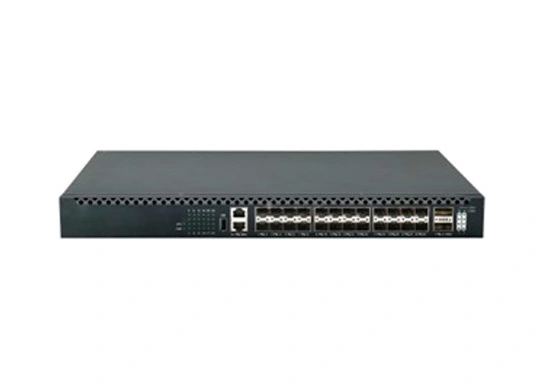

F5TAP300XC-242 2-Port 100G SFP + 24-Port 10G SFP Switch

FIBRIDGE F5TAP300XC-242 switch supports multiple types of port, supports flexible traffic aggregation, filtration, edit and distribution.


The series applies self-design CNOS system software platform, supporting TAP M: N, symmetric HASH, Shunt filtration, time stamp, and Message slicing. It supports multiple types of management. The switch applies standard 1U19'' chassis, with heat radiating fans.


F5TAP300XC-242 provides 2 QSFP28 optical ports and 24 10GE SFP+ optical ports. The chassis applies AC 100-240V or DC -40--60V power supply, supporting PoE. It supports working under environmental temperature 0℃~+45℃, humidity %10~%90 (No condense).


The series applies compact design. With small size and light weight, It can be easily installed on desktop or in cabinet.

Specification of F5TAP300XC-242 2-Port 100G SFP + 24-Port 10G SFP Switch

Network Characteristics
Ethernet ProtocolIEEE802.3/802.3u/802.3x/802.3Z/802.3AB store-and-forward
Traffic ControlIEEE802.3x flow control, Back pressure flow control
PortsOptical ports: 10GBase-FX SM/MM SFP+
100GE QSFP28
Electrical ports: 10/100/1000MBase-T(X)auto-adapt Ethernet RJ45 port
VLAN802.1Q standard VLAN
MAC Address64K
Jumbo FrameMax 15k Jumbo frame
Cache64Mbit
Switch Capacity880G
Packet Forward Rate660Mpps
ManagementWeb, SNMP V1/V2/V3, Console, Telnet
Optical Characteristics
Optical PortsSC/FC/SFP Optional
Fiber CoresSingle / Dual core transmission
Working Wavelength1310nm/1550nm(850nm)
Fiber ModeSM/MM
Environmental Characteristics
Temperature & HumidityWorking temperature: 0℃~50℃
Storage humidity: -20℃~70℃
Working humidity: 10%~90% RH No condensation
Storage humidity: 5%~95% RH No condensation
Rated voltageAC 100-240V/50-60Hz embedded switch power
DC-48~-60V external DC power
MTBF≥100000 H
Hardware configuration
Extend sub-cardNone
Serial port1 RJ45 type serial port
Out-band management port1 RJ45 out-band management port
In-band managementSupport
USB Port1 standard USB port



Features of F5TAP300XC-242 2-Port 100G SFP + 24-Port 10G SFP Switch

  • Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.1p store-and-forward.

  • MAC MAC Static configuration and dynamic learning, black hole MAC, IEEE802.1AE Macsec security control.

  • Support VLAN, GVRP, QinQ, voice VLAN.

  • Support STP/RSTP/MSTP/EAPS/ERPS.

  • Support IGMPv1/2/3和 MLDv1/2 Snooping, PIM-SM, PIM-DM.

  • Support IPv4/IPv6.

  • Support static routing, RIP, OSPF, IS-IS dynamic routing, policy-based-policy.

  • Support MCE function.

  • Support MPLS VPN.

  • Support QoS, traffic classification, CAR traffic restriction/monitor/shape, DSCP.

  • Support DHCP.

  • Support L2/L3/L4 ACL, IPv4/IPv6 ACL, VLAN ACL.

  • Support safe visit control, prevent DDos, Support RADIUS, BDTRCACS+.

  • Support port isolation, port security, IP+MAC+ port bunding.

  • Support IEEE802.1X certified.

  • Support static /LACP link aggregation, OAM, ISSU.

  • Support ZTP no-contact configuration, Web/Console/Telnet/SSH2.0.

  • Support SNMP V1/V2.V3.

  • Support TFTP upload and download management.

  • Support Hash Same source and same destination load balance.

  • Support RMON.

  • Support BVSS virtualize technology.

  • ISO9000 quality system certified.

  • Pass the ministry of public security testing.

  • Obtain network qualification certificate.
