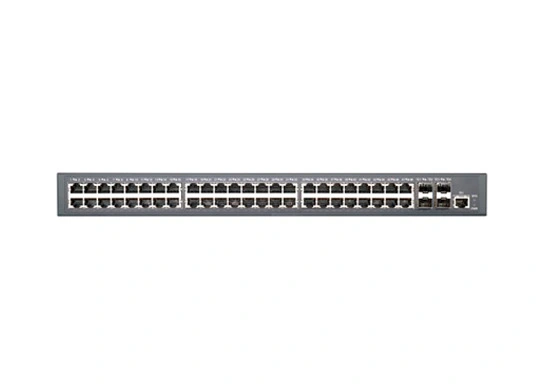

F5TAP300TX-484 4-Port 10G SFP + 48-Port Gigabit Electrical Ethernet Switch

FIBRIDGE F5TAP300TX-484 series managed switch is high performance Ethernet access product developed by Beijing Fibridge. It provides 48 100/1000Mbps RJ45 ports, and 4 10Gbps optical ports. With corresponding management software, it can realize management functions such as enquiry to each port's status, port configuration, configuration download and upload, display of system log and alarm log. F5TAP300TX-484 series is L3 switch, embedded with management module, providing Console and Ethernet two types of management ports. It supports Console, WEB, Telnet and SNMP management. The devices is embedded with power module, 220VAC or -36--72VDC is optional, supporting PoE+. The switch can work under environmental temperature of -10℃~+50℃, humidity %10~%90 (no condensation). With small size, light weight, F6 series can be easily installed on desktop or in cabinet.

Specification of F5TAP300TX-484 4-Port 10G SFP + 48-Port Gigabit Electrical Ethernet Switch

Network Characteristics
Ethernet ProtocolIEEE802.3/802.3u/802.3x/802.3Z/802.3AB store-and-forward
Traffic ControlIEEE802.3x flow control, Back pressure flow control
PortsOptical port: 1000MBase-FX, 10GBase-FX SM/MM SC/FC/SFP is optional
Electrical port: 10/100/1000MBase-T(X) auto-adapt Ethernet RJ45 port
VLAN802.1Q standard VLAN
MAC Address32K
Jumbo FrameMax 12K Jumbo frame
Cache64MB
Switch Capacity336Gbps/3.36Tbps
Packet Forward Rate148Mpps
ManagementWeb, SNMP V1/V2/V3, Console, Telnet
Optical Characteristics
Optical PortsSC/FC/SFP optional
Fiber CoresSingle / Dual core transmission
Working Wavelength1310nm/1550nm(850nm)
Fiber ModeSM/MM
Environmental Characteristics
Temperature & HumidityWorking temperature: -10℃~50℃
Storage humidity: -40℃~75℃
Working humidity: 10%~90% RH No condensation
Storage humidity: 5%~95% RH No condensation
Rated voltageAC 100-240V/50-60Hz 260W embedded switch power
DC-36~-72V external DC power
MTBF≥100000 H



Features of F5TAP300TX-484 4-Port 10G SFP + 48-Port Gigabit Electrical Ethernet Switch

  • Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.1p store-and-forward.

  • MAC Static configuration and dynamic learning, black hole MAC, IEEE802.1AE Macsec security control.

  • Support VLAN, GVRP, QinQ, voice VLAN.

  • Support STP/RSTP/MSTP/EAPS/ERPS.

  • Support IGMPv1/2/3 and MLDv1/2 Snooping.

  • Support IEEE1588 PTP clock protocol.

  • Support IPv4/IPv6.

  • Support static routing, RIP, OSPF dynamic routing, VRRP.

  • Support DHCP.

  • Support L2/L3/L4 ACL, IPv4/IPv6 ACL, VLAN ACL.

  • Support QoS, traffic classification, CAR traffic restriction/monitor/shape, DSCP.

  • Support safe visit control, prevent DDos support RADIUS/TRCACS+.

  • Support port isolation, port security, IP+MAC+ port bunding.

  • Support IEEE802.1X certified.

  • Support static /LACP link aggregation, OAM, ISSU.

  • Support ZTP no-contact configuration, Web/Console/Telnet/SSH2.0.

  • Support SNMP V1/V2.V3.

  • Support TFTP upload and download management.

  • Support RMON.

  • ISO9000 quality system certified.

  • Pass the ministry of public security testing.
