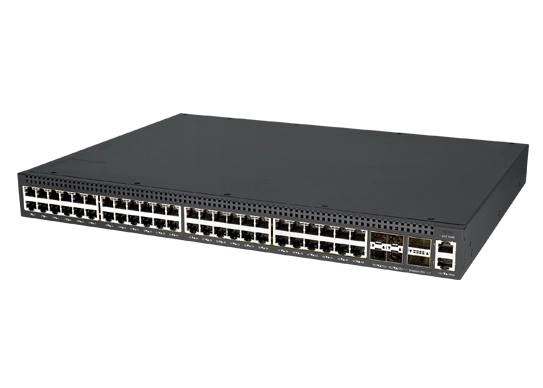

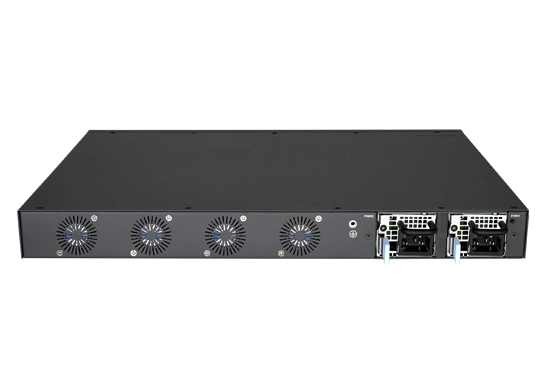

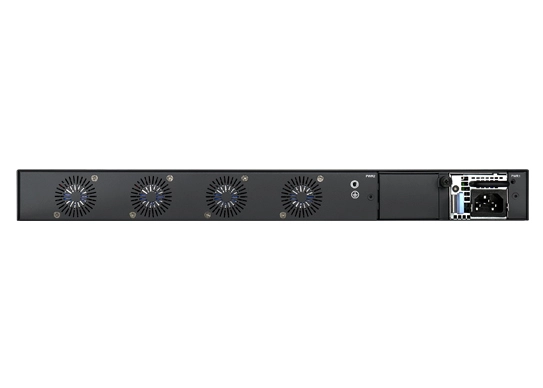

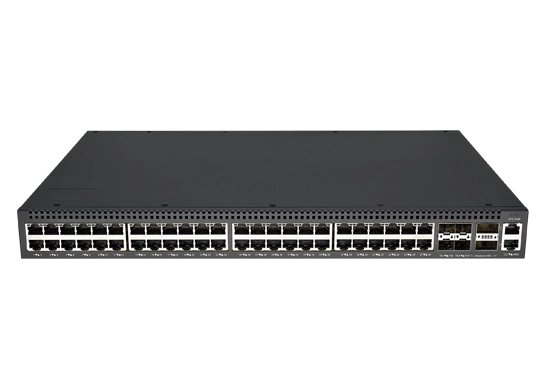

F5S700EXQ-4842 2-Port 40G SFP + 4-Port 10G SFP + 48-Port 2.5G Electrical PoE Switch

FIBRIDGE F5S700EXQ-4842 serial managed switch is high performance Ethernet access product developed by Beijing Fibridge. It provides 4 10/100/1000Mbp Ethernet electrical ports, 24 10Gbps SFP+ optical ports, 2 40Gbps QSPF optical ports. With corresponding management software, it can realize management functions such as enquiry to each port's status, port configuration, configuration download and upload, display of system log and alarm log. F5S700EXQ-4842 series is L3 switch, embedded with management module, providing Console and Ethernet two types of management ports. It supports Console, WEB, Telnet and SNMP management. The devices is embedded with power module, 220VAC or DC36-72V input is optional. The switch, equipped with 5 fans, can work under environmental temperature of -10℃~+50℃, humidity %10~%90 (no condensation). With small size, light weight, F6 series can be easily installed on desktop or in cabinet.

Specification of F5S700EXQ-4842 2-Port 40G SFP + 4-Port 10G SFP + 48-Port 2.5G Electrical PoE Switch

Network Characteristics
Ethernet Protocol802.3/802.3u/802.3x/802.3Z/802.3AB store-and-forward
Flow controlIEEE802.3x flow control, Back pressure flow control
Ports10GBase-FX SM/MM SFP+ optical port
40GBase-FX SM/MM QSFP optical port
Electrical Port: 10/100/1000M/2.5GBase-T(X) auto-adapt Ethernet RJ45 port
VLAN802.1Q standard VLAN
MAC Adress64K
Jumbo frameMax 15K Jumbo frame
Switch Capacity2.56Tbps
Packet Forwarding Rate960Mpps
ManagementWeb, SNMP V1/V2/V3, Console, Telnet
Optical Characteristics
Optical ConnectorSC/FC/SFP optional
Fiber coresSingle / Dual core transmission
Fiber modeSingle Mode / Multimode
Environmental Characteristics
Temperature & HumidityWorking temperature: -10℃~50℃
Storage temperature: -40℃~75℃
Working humidity: 10%~90% RH No condensation
Storage humidity: 5%~90% RH No condensation
PowerAC 100-240V/50-60Hz embedded switch power,
DC-36~-72V external DC power
MTBF≥100000 H

Features of F5S700EXQ-4842 2-Port 40G SFP + 4-Port 10G SFP + 48-Port 2.5G Electrical PoE Switch

  • Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.1p store-and-forward.

  • MAC Static configuration and dynamic learning, black hole MAC, IEEE802.1AE Macsec security control.

  • Support VLAN, GVRP, QinQ, voice VLAN.


  • IGMPv1/2/3 and MLDv1/2 Snooping, PIM-SM, PIM-DM.

  • Support IPv4/IPv6.

  • Support static routing, RIP, OSPF, BGP, IS-IS dynamic routing, Policy-based-routing.

  • Support MCE function.

  • Support MPLS VPN.

  • Support QoS, flow classification, CAR flow restriction/monitor/shape, DSCP.

  • Support DHCP.

  • Support L2/L3/L4 ACL, IPv4/IPv6 ACL, VLAN ACL.

  • Support safe visit control, prevent DDosSupportRADIUS/TRCACS+.

  • Support port isolation, port security, IP+MAC+ port bunding.

  • Support IEEE802.1X certified.

  • Support static/LACP link aggregation, OAM, ISSU.

  • Support ZTP non-contact configuration, Web/Console/Telnet/SSH2.0.

  • Support SNMP V1/V2.V3.

  • Support TFTP upload and download management.

  • Support RMON.

  • Support BVSS virtualization technology, FCOE.

  • ISO9000 quality system certified.

  • Pass the ministry of public security testing.

  • Obtain network qualification certificate.
