Name: F5S800XQC-4824 4-Port 100G SFP + 2-Port 40G SFP + 48-Port 10G SFP Switch
Brand: Beijing Fibridge Co., Ltd.

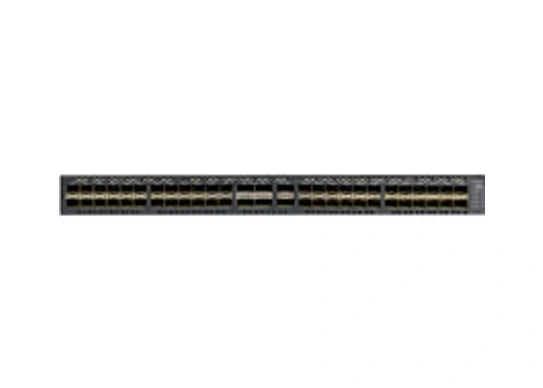

F5S800XQC-4824 4-Port 100G SFP + 2-Port 40G SFP + 48-Port 10G SFP Switch

FIBRIDGE F5S800XQC-48 serial managed switch is high performance Ethernet access product developed by Beijing Fibridge. It provides 48 10Gbps SFP+ optical ports, 2 40Gbps QSPF optical ports and 4 100Gbps QSPF optical ports. With corresponding management software, it can realize management functions such as enquiry to each port's status, port configuration, configuration download and upload, display of system log and alarm log. F5S800XQC-482 series is L3 switch, embedded with management module, providing Console and Ethernet two types of management ports. It supports Console, WEB, Telnet and SNMP management. Designed to function as a core switch distribution switch access switch, the device is embedded with power module, 220VAC or DC36-72V for options. The switch, equipped with 5 fans, can work under environmental temperature of -10℃～+50℃, humidity %10~%90（no condensation）. With small size, light weight, F6 series can be easily installed on desktop or in cabinet.

Specification of F5S800XQC-4824 4-Port 100G SFP + 2-Port 40G SFP + 48-Port 10G SFP Switch

Network Characteristics
Ethernet Protocol	IEEE802.3/802.3u/802.3x/802.3Z/802.3AB store-and-forward
Flow control	IEEE802.3x flow control, back pressure flow control
Ports	Optical ports: 10GBase-FX SFP+ 40GBase-FX QSFP 100GBase-FX SFP28 Electrical ports: 10/100/1000MBase-T(X)auto-adapt Ethernet RJ45 port



VLAN	802.1Q standard VLAN
MAC Adress	64K
Jumbo frame	Max 15K Jumbo frame
Cache	64Mbit
Switch Capacity	2.56Tbps
Packet Forwarding Rate	1440Mpps
Management	Web, SNMP V1/V2/V3, Console, Telnet
Optical Characteristics
Optical Connector	SC/FC/SFP optional
Fiber cores	Single / Dual core transmission
Wavelength	1310nm/1550nm(850nm)
Fiber mode	SM/MM
Environmental Characteristics
Temperature & Humidity	Working temperature: -10℃～50℃ Storage temperature: -20℃～70℃ Working humidity: 10%～90% RH No condensation Storage humidity: 5%～90% RH No condensation



Power	AC 100-240V/50-60Hz 260W embedded switch power DC-36~-72V external DC power
Power
MTBF	≥100000 H

Features of F5S800XQC-4824 4-Port 100G SFP + 2-Port 40G SFP + 48-Port 10G SFP Switch

Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.1p store-and-forward.
MAC Static configuration and dynamic learning, black hole MAC, IEEE802.1AE Macsec security control.
Support VLAN, GVRP, QinQ, voice VLAN.
Support STP/RSTP/MSTP/EAPS/ERPS.
IGMPv1/2/3 and MLDv1/2 Snooping, PIM-SM, PIM-DM.
Support IPv4/IPv6.
Support static routing, RIP, OSPF, BGP, IS-IS dynamic routing, Policy-based-routing.
Support MCE function.
Support MPLS VPN.
Support QoS, flow classification, CAR flow restriction/monitor/shape, DSCP.
Support DHCP.
Support L2/L3/L4 ACL, IPv4/IPv6 ACL, VLAN ACL.
Support safe visit control, prevent DDosSupportRADIUS/TRCACS+.
Support port isolation, port security, IP+MAC+ port bunding.
Support IEEE802.1X certified.
Support static/LACP link aggregation, OAM, ISSU.
Support ZTP non-contact configuration, Web/Console/Telnet/SSH2.0.
Support SNMP V1/V2.V3.
Support TFTP upload and download management.
Support RMON.
Support BVSS virtualization technology, FCOE.
Support DDM.
ISO9000 quality system certified.
Pass the Ministry of Public Security testing.
Obtain network qualification certificate.

Fibridge team is here to help!

If you have any product inquiries for Network Switches, please feel free to contact us.

Beijing Fibridge Co., Ltd.

Contact With Us

E-mail: steven@fibridge.com

Have a Questions? Call Us

8610-58858988

Related Core and Aggregation Switch

F6E800XQ-486 6-Port 40G SFP + 48-Port 10G SFP Switch

Managed Carrier Grade Core Switch F6CH800-3

Layer3 Managed 6 10G OPT and 48 1000Base-Tx Switch F3S900TX-486

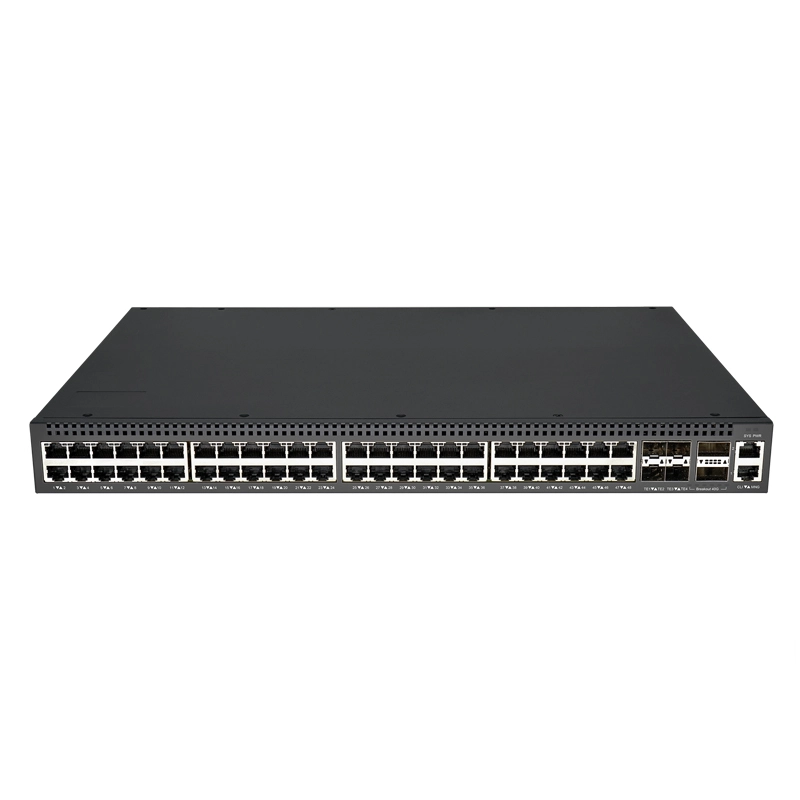

F5S700EXQ-4842 2-Port 40G SFP + 4-Port 10G SFP + 48-Port 2.5G Electrical PoE Switch
