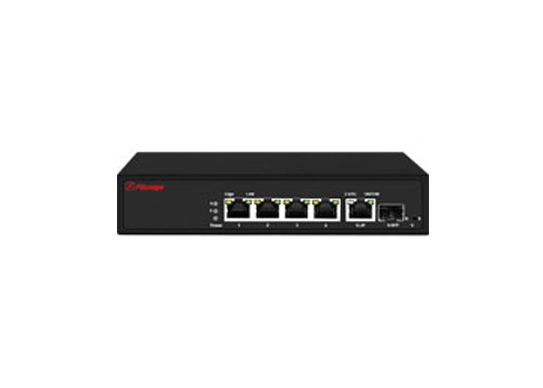

Name: 1-Port 100M Fx + 4-Port 100M Tx PoE Unmanaged Switch F6C-5800-4TP1FX
Brand: Beijing Fibridge Co., Ltd.

1-Port 100M Fx + 4-Port 100M Tx PoE Unmanaged Switch F6C-5800-4TP1FX

Fibridge F6C-4TP1FX series network switch is a high-performance Ethernet access equipment developed by Beijing Fibridge. It has 4* 10/100 Mbps Ethernet PoE interfaces and 1* 100 Mbps optical port, making it a reliable choice for users seeking a compact switch 1 gb solution in small to medium networks. The device is built-in power module, allowing you to choose 220V AC input or 12V DC input. The F6 series features a compact desktop design, small size, and light weight, making it easy to place on the desktop or in a cabinet. The series' working temperature is -20ºC to +45ºC, 10%~90 (no condensation).
The product supports PoE, outputs 4*AF/AT, and supports PoEdog.

1-Port 100M Fx + 4-Port 100M Tx PoE Unmanaged Switch F6C-5800-4TP1FX Specification

Network Characteristics
Ethernet Protocol	Support IEEE802.3/802.3u/802.3x/802.3az
Flow Control	IEEE802.3x flow control
Network Interface	OPT: 100MBase-FX Single/multimode SC/FC/SFP/1*9 ETH: 10/100MBase-T(X)Adaptive Ethernet RJ45 port
VLAN	No
MAC Addresses	1K
Huge Frame	No
Cache	448Kbit
Packet Buffer	1Gbps
Packet Forwarding Rate	0.724Mpps
Management	No
Optical Characteristics
Optical Interface	SC/FC/SFP/1*9(Optional)
Fiber Core Count	Single / Dual core transmission
Wavelength	850nm
Fiber Mode	Single Mode / Multimode
Environmental Characteristics
Temperature & Humidity	Working temperature: -20ºC to +45ºC, Working humidity:10%~90% RH No condensation
Power	AC 100-240V/50-60Hz Built-in switching power supply, DC12V 1A External power supply
MTBF	≥100000 hours

1-Port 100M Fx + 4-Port 100M Tx PoE Unmanaged Switch F6C-5800-4TP1FX Features

Support IEEE802.3/802.3u/802.3x/802.3az forward mode
Reliable performance
Support for Port auto-negotiation
Support flow control
Modular design make the equipment reliable and flexible
Support overload protection
Support reverse-link protection
Support optical port hot plug
ISO9000 Qualified
Pass test by Ministry of Public Security
Obtain network qualification certificate

PoE Features of 1-Port 100M Fx + 4-Port 100M Tx PoE Unmanaged Switch F6C-5800-4TP1FX

Support IEEE802.3af and IEEE802.3at
POE++ IEEE802.3bt optional
IEEE802.3af standard 15.4w
IEEE802.3at standard 30w
Optional POE++ IEEE802.3bt max 90w
External POE Power Supply DC48/52v, external POE power adaptor up to 600w as accessory
Internal POE Power AC 90-240v,Maximum 1200w inside for 1U type
4kv POE port anti-lightning

Ordering Information of 1-Port 100M Fx + 4-Port 100M Tx PoE Unmanaged Switch F6C-5800-4TP1FX

Model	Description	Management
F6C-5800-4TP1FX	110/100Base-Fx Port 410/100M auto PoE ports AF/AT	None
