5800c 8t1fx 543
5800c 8t1fx 543

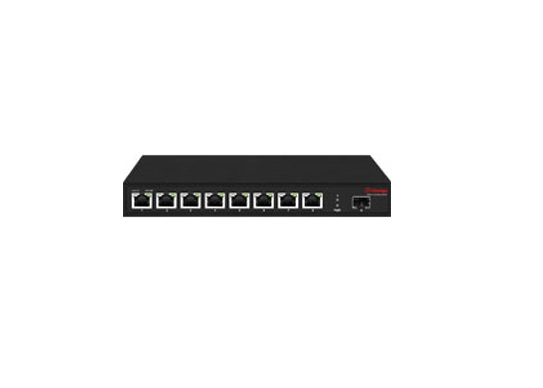

1-Port 100M Fx + 8-Port 100M Tx Unmanaged Switch

Fibridge F6C-5800-8T1FX series network switch is a high-performance Ethernet access equipment developed by Beijing Fibridge. It has 8* 10/100 Mbps Ethernet interface and 1 100M optical port. The device provides 12V DC power input. The F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet. The series' working temperature is 0ºC~+70ºC,10%~90(no condensation).

Contact

 1-Port 100M Fx + 8-Port 100M Tx Unmanaged Switch Specification

Network Characteristics
Ethernet ProtocolIEEE IEEE802.3/802.3u/802.3x/802.3Z/802.3AB store-and-forward
Flow ControlIEEE802.3x flow control, back-pressure flow control
Network InterfaceETH: 10/100Base-T(X)Adaptive Ethernet RJ45 port
VLANNo
MAC Addresses8K
Jumbo FrameNone
Cache4M
Packet Buffer20Gbps
Packet Forwarding Rate14.88Mpps
ManagementNo
Optical Characteristics
Optical Interface1*100Base-Fx
Fiber Core Countsingle core or dual fibers
Wavelength850/1310/1550
Fiber ModeSM/MM
Environmental Characteristics
TemperatureWorking temperature: 0ºC~70ºC
Storage temperature: -20ºC~85ºC
HumidityWorking temperature: 10%~90% RH no condensation
Storage temperature: 5%~90% RH no condensation
PowerDC12V 1A external DC power
MTBF≥100000 hours


1-Port 100M Fx + 8-Port 100M Tx Unmanaged Switch Features

  • Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3at/802.3af/802.1p forward mode;

  • Reliable performance

  • Support Port auto-negotiation;

  • Support flow control;

  • Support overload protection;

  • Support reverse-link protection;

  • Support optical port hot plug

  • PoE function is optional

  • ISO9000 Qualified

  • Pass test by Ministry of Public Security

  • Obtain network qualification certificate


Ordering Information of 1-Port 100M Fx + 8-Port 100M Tx Unmanaged Switch

ModelPortManagement
F6C-5800-8T1FX8*10/100Base-T(X) auto-adapt RJ45
1*100Base-Fx port		None
