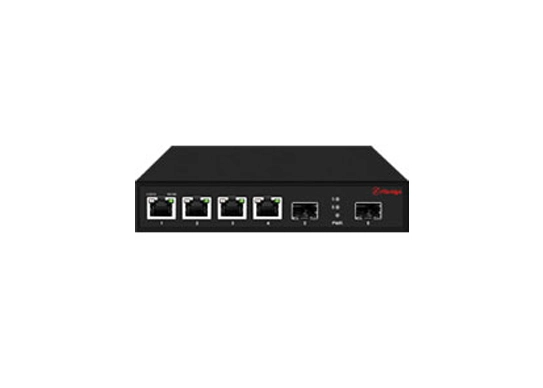

2-Port 1000M SFP + 4-Port 1000M Tx Unmanaged Switch

Fibridge F6C-5800-4GT2S series network switch is a high-performance ether-net access equipment developed by Beijing Fibridge. It has 4 10/100/1000 Mbps Ethernet interfaces and 2* 1000 Mbps optical ports. The device is built-in power module, you can choose 220V AC input or 12V DC input.The F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet. The series' working temperature is 0-70 ºC, 10%-90% humidity (No condensation).

Contact

 2-Port 1000M SFP + 4-Port 1000M Tx Unmanaged Switch Specifications

Network Characteristics
Ethernet ProtocolIEEE802.3/802.3u/802.3x/802.3Z/802.3ABstore-and-forward
Flow ControlIEEE802.3x flow control, back-pressure flow control
Network InterfaceOPT: 1000MBase-FX Single/multimode SC/FC/SFP optional
ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLANNo
MAC Addresses4K
Jumbo FrameMax size 9216
CacheNO
Packet Buffer12Gbps
Packet Forwarding Rate8.928Mpps
ManagementNo
Optical Characteristics
Optical InterfaceSC/FC/SFP(Optional)
Fiber Core CountSingle/Dual core transmission
Wavelength1310nm/1550nm(850nm)
Fiber ModeSingle Mode/Multimode
Environmental Characteristics
TemperatureWorking temperature: 0ºC~70ºC
Storage temperature: -20ºC~85ºC
HumidityWorking temperature: 10%~90% RH no condensation
Storage temperature: 5%~90% RH no condensation
PowerAC 100-240V/50-60Hz Built-in switching power supply,
DC12V 1A External power supply
MTBF≥100000 hours
Mechanical Characteristics
Structural Dimension163× 122× 52mm
Product Weight0.8kg


 2-Port 1000M SFP + 4-Port 1000M Tx Unmanaged Switch Features

  • IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3at/802.3af/802.1p store-and-forward

  • Reliable work in different environments

  • Support electrical port auto-negotiation

  • Support flow control

  • Support overload protection

  • Support reverse connection protection

  • Support optical port hot plug

  • PoE optional

  • ISO9000 qualified

  • Pass test by Ministry of Public Security

  • Obtain network qualification certificate.


Ordering Information of 2-Port 1000M SFP + 4-Port 1000M Tx Unmanaged Switch

ModelDescriptionManagement
F6C-5800-4GT2S

4*10/100/1000M Base-Tx Ports

1*1000M optical port

None
