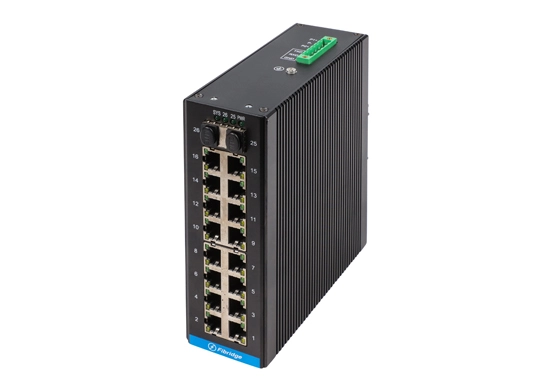

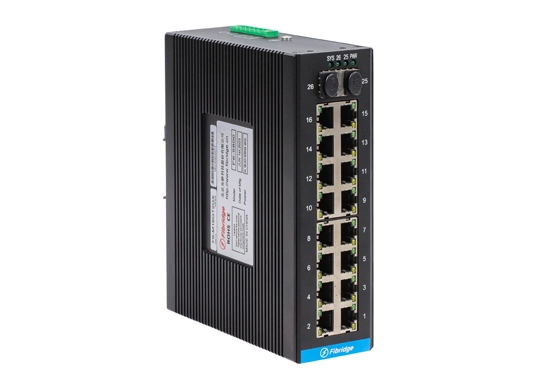

F6-16GT2GX DIN-RAIL Unmanaged 2-Port 1000M Fx + 16-Port 1000M Tx Industrial Switch

Fibridge F6-16GT2GX series network industrial switch is a high-performance Ethernet access equipment developed by Beijing Fibridge. It has 16* 10/100/1000 Mbps Ethernet interfaces and 2* 1000 Mbps optical ports.
The device is built-in power module, providing 220V AC input or 12V DC input options. Poe+ function is optional. The device operates at a temperature of -40ºC~+85ºC Range and a humidity of %10~%90(No condensation).The F6 series is compact desktop design, small size, light weight, easy to place in desktop or cabinet.

Specification of F6-16GT2GX DIN-RAIL Unmanaged 2-Port 1000M Fx + 16-Port 1000M Tx Industrial Switch

Network Characteristics
Ethernet ProtocolSupport IEEE802.3/802.3u/802.3x/802.3az
Flow ControlIEEE802.3x flow control

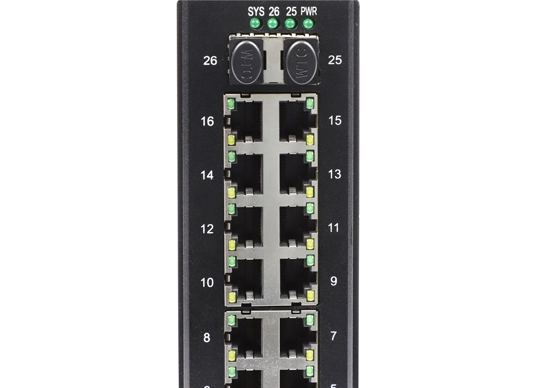

Network InterfaceOPT: 1000MBase-FX Single/multimode SC/FC/SFP
ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLANSupport IEEE 802.1q VLAN,QinQ,Protocol VLAN
MAC Addresses16K
Huge FrameMax size 16K
Cache4Mb
Packet Buffer36Gbps
Packet Forwarding Rate26.064Mpps
ManagementN/A
Optical Characteristics
Optical InterfaceSC/FC/SFP(Optional)
Fiber Core CountSingle / Dual core transmission
Wavelength1310nm/1550nm(850nm)
Fiber ModeSingle Mode / Multimode
Environmental Characteristics
Temperature & HumidityWorking temperature:-40ºC~85ºC
Storage temperature:-40ºC~85ºC
Working humidity:10%~90% RH No condensation
Storage humidity:5%~90% RH No condensation

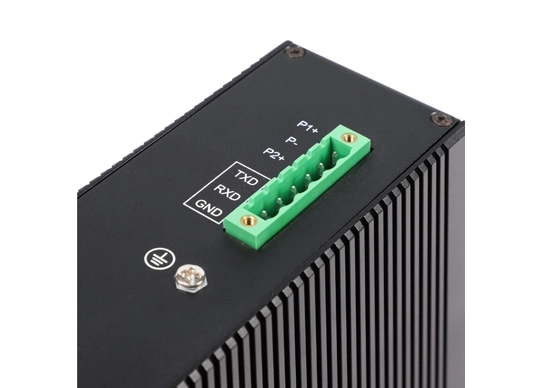

PowerAC 100-240V/50-60Hz Built-in switching power supply,
DC48~56V 1.5A External power supply(PoE),
DC12V 1A External power supply
MTBF≥100000 hours


Features of F6-16GT2GX DIN-RAIL Unmanaged 2-Port 1000M Fx + 16-Port 1000M Tx Industrial Switch

  • Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.3at/802.3af/802.1p

  • Meet the requirements of reliable work in harsh electrical environment;

  • Support flow control;

  • Support IPv4/IPv6;

  • Support IGMPv1/2/3 and MLDv1/2 Snooping;

  • Support registration of GMRP protocol

  • Support ACL;

  • Support SSH V1/V2/HTTPS;

  • Support ROMN;

  • Support security access control, support RADIUS/TRCACS;

  • Support STP/RSTP/MSTP/EAPS/ERPS;

  • Support Poe+ function;

  • Support overload protection;

  • Reverse-link protection is supported;

  • Support optical port hot plug;

  • Level of protection:IP40;

  • ISO9000 Certified

  • Passed test by the Ministry of Public Security

  • Network access qualification certified
