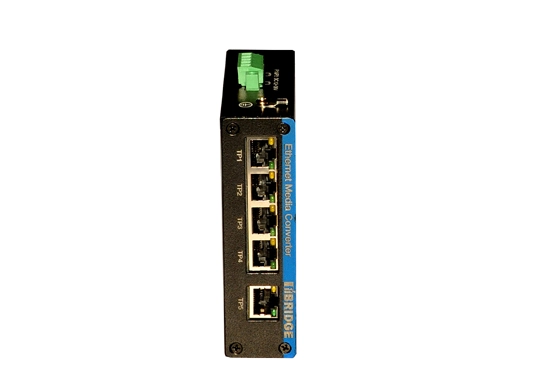

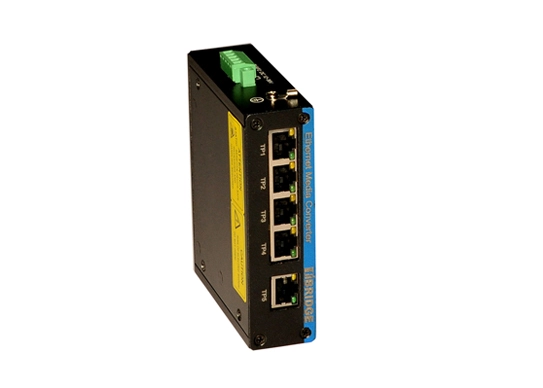

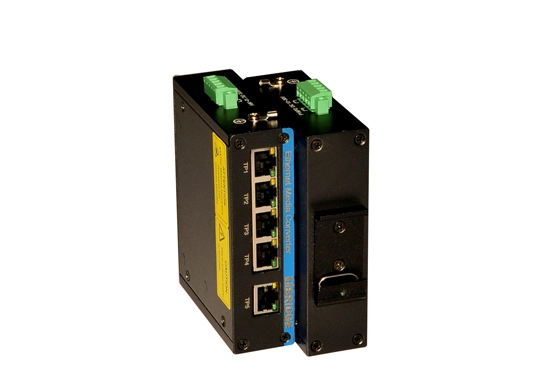

F6-5800-5T DIN-Rail Industrial Unmanaged 5 100M Ethernet Switch

Fibridge F6-5800-5T series network industrial switch is a high-performance ethernet access equipment developed by Beijing Fibridge. It has 5* 10/100 mbps Ethernet interface.The device is built-in power module, you can choose 220V AC input or 12V DC input products.The device operates at a temperature of -40ºC~+85ºC Range and a humidity of %10~%90(No condensation).The F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet.

Specification of F6-5800-5T DIN-Rail Industrial Unmanaged 5 100M Ethernet Switch

Network     Characteristics
Ethernet   ProtocolSupport IEEE802.3/802.3u/802.3x/802.3az
Flow   ControlNo
Network   InterfaceOPT: No
ETH:   10/100MBase-T(X)Adaptive Ethernet RJ45 port
VLANNo
MAC   Addresses1K
Jumbo   FrameNo
Cache512Kbit
Packet   Buffer1Gbps
Packet   Forwarding Rate0.744Mpps
ManagementNo
Optical   Characteristics
Optical   InterfaceNo
Fiber   Core Count
Wavelength
Fiber   Mode
Environmental   Characteristics
Temperature   & HumidityWorking temperature:-40ºC~85ºC
Storage   temperature:-40ºC~85ºC
Working   humidity:10%~90% RH No condensation
Storage   humidity:5%~90% RH No condensation
PowerAC 100-240V/50-60Hz Built-in   switching power supply,
DC12-57V   1A External power supply
MTBF≥100000 hours
Mechanical   Characteristics
Structural   Dimension105*90*36 200*130*40mm
Product   Weight0.43  0.54kg


Features of F6-5800-5T DIN-Rail Industrial Unmanaged 5 100M Ethernet Switch

  • Support IEEE802.3/802.3u/802.3x/802.3az

  • Meet the requirements of reliable work in harsh electrical environment;

  • Support Ethernet Port auto-negotiation;

  • Support flow control;

  • Support overload protection;

  • Support Reverse-link protection

  • Support optical port hot plug;

  • Level of protection:IP40;

  • Industrial &Modular design make the equipment reliable and flexible;

  • ISO9000 qualified;

  • Product Passes testing of the Ministry of Public Security;

  • Product obtains network qualification certificate.
