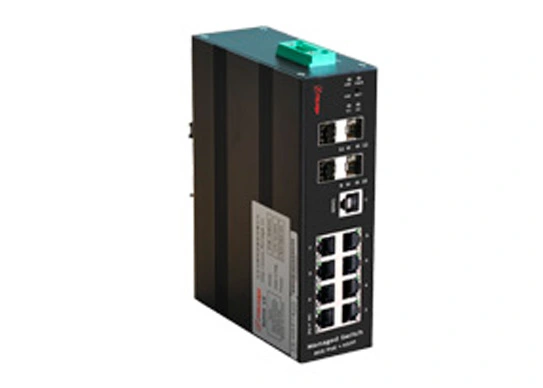

F6-5800-M8GT4XL3 DIN-RAIL L3 Managed 4-Port 10G SFP + 8-Port 1000M Tx Industrial Switch

FIBRIDGE F6-5800-M8GT4XL3 series managed DIN-RAIL industrial switch is a high-performance ethernet access equipment developed by Beijing Fibridge. It has 8 10/100/1000Mbps Ethernet electrical ports and 4 10G SFP+ optical ports. With corresponding network management software, it can realize management functions such as Port Status Query, port configuration, configuration download, upload, system log and alarm record display. F6-5800-M8GT4XL3 series can be built-in network management module, providing Console and Ethernet two kinds of management interface, can support Console, WEB, Telnet and SNMP and other network management methods. With power module embedded, the product provides dual powers 12V-57 DC supplies. Poe+ function is optional. The device operates at a temperature of -30℃~+70℃ Range and a humidity of %10~%90 (No condensation). F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet.

Specification of F6-5800-M8GT4XL3 DIN-RAIL L3 Managed 4-Port 10G SFP + 8-Port 1000M Fx PoE Industrial Switch

Network Characteristics
Ethernet ProtocolCompliant with IEEE802.3/802.3u/802.3x/802.3Z/802.3AB, store-and-forward
Flow ControlIEEE802.3x flow control, back pressure flow control
Ports2.5/10G Base-FX SM/MM SFP+ optical ports
ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLANIEEE 802.1q standard VLAN
MAC Addresses12k
Jumbo FrameMax size 9K
Cache4Mb
Packet Buffer128Gbps
Packet Forwarding Rate95.232Mpps
ManagementWeb, SNMP V1/V2/V3, Console, Telnet
Optical Characteristics
Optical InterfaceSC/FC/SFP(Optional)
Fiber Core CountSingle / Dual core transmission
Wavelength1310nm/1550nm(850nm)
Fiber ModeSingle Mode / Multimode
Environmental Characteristics
Temperature & HumidityWorking temperature: -30℃~70℃
Storage temperature: -40℃~85℃
Working humidity: 10%~90% RH No condensation
Storage humidity: 5%~90% RH No condensation
PowerAC 100-240V/50-60Hz Built-in switching power supply,
DC48~56V 1.5A External power supply(PoE),
DC12V 1A External power supply
MTBF≥100000 hours


Features of F6-5800-M8GT4XL3 DIN-RAIL L3 Managed 4-Port 10G SFP + 8-Port 1000M Tx Industrial Switch


  • Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.3at/802.3af/802.1p store-and-forward

  • Meet requirements of reliable work in harsh electrical environment

  • Support dual power supplies

  • Support port management, speed rate limit, storm restrict, bi-directional port mirror, etc.

  • Support flow control

  • Support IPv4/IPv6

  • Support STP/RSTP/MSTP/EAPS/ERPS

  • Support IGMPv1/2/3 and MLDv1/2 Snooping

  • Support ACL

  • Support SSH V1/V2/HTTPS

  • Support VLLP,VRRP

  • Support MVR,GMRP,PIM-SM

  • Support layer3 port

  • Support static routing, dynamic routing RIP v1/v2,OSPFv2/v3,BGP4;

  • Support ROMN;

  • Support safe visit control, support RADIUS/TRCACS+

  • Support system operation log

  • PoE function is optional

  • Support one button recovery

  • Support overload protection

  • Support Reverse-link protection

  • Support optical port hot plug

  • Level of protection: IP40

  • Industrial and modular design makes the product more reliable and flexible



Ordering Information of F6-5800-M8GT4XL3 DIN-RAIL L3 Managed 4-Port 10G SFP + 8-Port 1000M Tx Industrial Switch


Model

Interface

Management

F6-5800-M8GT4GS

8* 10/100/1000MBase-T(X)  port

CLI, WEB, SNMP, TELNET
