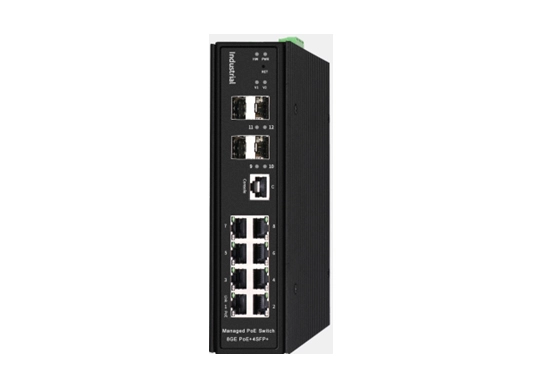

F6-5800-M8GTP4GS DIN-RAIL Managed 4 1000M Fx + 8 1000M PoE Industrial Switch

Fibridge F6-5800-M8GTP4GS series network management industrial switch is a high-performance Ethernet access equipment developed by Beijing Fibridge. It has 8* 10/100/1000 Mbps PoE Ethernet interfaces and 4* 1000 Mbps optical ports.

With corresponding network management software, it can realize the management functions such as Port Status Query, port configuration, configuration download, upload, system log and alarm record display. The series industrial switches can be built-in network management module, provide Console and Ethernet two kinds of network management interface, can support Console, WEB, Telnet and SNMP and other network management methods.

The device is built-in power module, providing 220V AC input or 12-57VDC input options. Poe+ function is supported, applies 40-57VDC power supply, outputs 1*af/at/bt and 7*af/at/bt ports. The device operates at a temperature of -40ºC~+85ºC Range and a humidity of %10~%90(No condensation).The F6 series is compact desktop design, small size, light weight, easy to place in desktop or cabinet. PoE function is optional.

Specification of F6-5800-M8GTP4GS DIN-RAIL Managed 4 1000M Fx + 8 1000M PoE Industrial Switch

Network Characteristics
Ethernet ProtocolSupport IEEE802.3/802.3u/802.3x/802.3Z/802.3AB, store-and-forward mode
Flow ControlIEEE802.3x flow control,back pressure flow control
Network InterfaceOPT: 1000MBase-FX Single/multimode SC/FC/SFP
ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLANSupport IEEE 802.1q VLAN,QinQ,Protocol VLAN
MAC Addresses12K
Huge FrameMax size 9K
Cache4Mb
Packet Buffer56G/128Gbps
Packet Forwarding Rate41.664Mpps/95.232Mpps
ManagementSupport WEB, Telnet, Console, SNMP
Optical Characteristics
Optical InterfaceSC/FC/SFP(Optional)
Fiber Core CountSingle / Dual core transmission
Wavelength1310nm/1550nm(850nm)
Fiber ModeSingle Mode / Multimode
Environmental Characteristics
Temperature & HumidityWorking temperature:-40ºC~85ºC
Storage temperature:-40ºC~85ºC
Working humidity:10%~90% RH No condensation
Storage humidity:5%~90% RH No condensation
PowerAC 100-240V/50-60Hz Built-in switching power supply,
DC40~57V 4A external DC power(PoE)
DC12~57V 1A external DC power(not PoE)
MTBF≥100000 hours
Mechanical Characteristics
Structural Dimension163× 122× 52mm
Product Weight0.8kg


Features of F6-5800-M8GTP4GS DIN-RAIL Managed 4 1000M Fx + 8 1000M PoE Industrial Switch

  • Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.3at/802.3af/802.1p store-and-forward mode

  • Meet requirements of reliable work in harsh electrical environment

  • Dual power supplies

  • Support SNMP, Telnet, Web and CLI Management

  • Support port management, speed limit, storm restriction, bi-directional port mirror

  • Support flow control.

  • Support IPv4/IPv6

  • Support STP/RSTP/MSTP/EAPS/ERPS;

  • Support IGMPv1/2/3 and MLDv1/2 Snooping

  • Support GMRP protocol register

  • Support ACL

  • Support SSH V1/V2/HTTPS

  • Support ROMN

  • Support VLAN

  • Support safe visit control, support RADIUS/TRCACS+

  • Support system operation log

  • Poe+ function is supported, applies 40-57VDC power supply, outputs 1*af/at/bt and 7*af/at/bt ports.

  • Support overload protection

  • Support Reverse-link protection

  • Support optical port hot plug

  • Level of protection:IP40

  • ISO9000 certified

  • Pass test by the Ministry of Public Security

  • Obtain network qualification certificate


Ordering Information of F6-5800-M8GTP4GS DIN-RAIL Managed 4 1000M Fx + 8 1000M PoE Industrial Switch

ModelInterfaceManagement
F6-5800-M8GTP4GS1*IEEE802.3af/at/bt standard 10/100/1000MBase-T(X) PoE ports
7*IEEE802.3af/at standard 10/100/1000MBase-T(X) PoE port
4*1000MBase-FX SFP optical ports
Web
Telnet
Console
