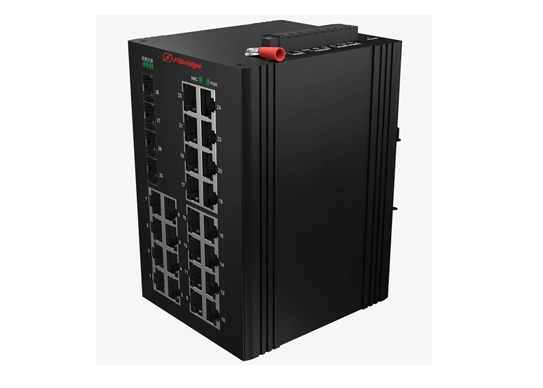

F6-M24GT4GX DIN-Rail Managed 4 1000M Fx +24 1000M Tx Industrial Switch

Fibridge F6-M24GT4GX series network management industrial switch is a high-performance Ethernet access equipment developed by Beijing Fibridge. It has 24* 10/100/1000 Mbps Ethernet interfaces and 4* 1000 Mbps optical ports. With corresponding network management software, it can realize the management functions such as Port Status Query, port configuration, configuration download, upload, system log and alarm record display. F6-M24GT4GX series industrial switches can be built-in network management module, provide Console and Ethernet two kinds of network management interface, can support Console, WEB, Telnet and SNMP and other network management methods. The device is built-in power module, providing 220V AC input or 12V DC input options. Poe+ function is optional. The device operates at a temperature of -40ºC~+85ºC Range and a humidity of %10~%90(No condensation).The F6 series is compact desktop design, small size, light weight, easy to place in desktop or cabinet.


Contact

Specification of F6-M24GT4GX DIN-Rail Managed 4 1000M Fx +24 1000M Tx Industrial Switch

Network Characteristics
Ethernet ProtocolSupport IEEE802.3/802.3u/802.3x/802.3az
Flow ControlIEEE802.3x flow control
Network InterfaceOPT: 1000MBase-FX Single/multimode SC/FC/SFP
ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLANSupport IEEE 802.1q VLAN,QinQ,Protocol VLAN
MAC Addresses16K
Huge FrameMax size 16K
Cache4Mb
Packet Buffer56Gbps
Packet Forwarding Rate40.544Mpps
ManagementSupport WEB,Telnet,Console,SNMP
Optical Characteristics
Optical InterfaceSC/FC/SFP(Optional)
Fiber Core CountSingle / Dual core transmission
Wavelength1310nm/1550nm(850nm)
Fiber ModeSingle Mode / Multimode
Environmental Characteristics
Temperature & HumidityWorking temperature:-30ºC~85ºC
Storage temperature:-40ºC~85ºC
Working humidity:10%~90% RH No condensation
Storage humidity:5%~90% RH No condensation
PowerAC 100-240V/50-60Hz Built-in switching power supply,
DC48~56V 1.5A External power supply(PoE),
DC12V 1A External power supply
MTBF≥100000 hours


Features of F6-M24GT4GX DIN-Rail Managed 4 1000M Fx +24 1000M Tx Industrial Switch

  • Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.3at/

  • 802.3af/802.1p through mode

  • Meet the requirements of reliable work in harsh electrical environment

  • Support SNMP, Telnet, Web and CLI Management Methods

  • Support the function to query and configure the status of each port, including connection status, rate, duplex, closed, Port Mirroring, storm control

  • Support flow control

  • Support IPv4/IPv6

  • Support IGMPv1/2/3 and MLDv1/2 Snooping

  • Support registration of GMRP protocol

  • Support ACL

  • Support SSH V1/V2/HTTPS

  • Support ROMN

  • Support security access control, support RADIUS/TRCACS

  • Support STP/RSTP/MSTP/EAPS/ERPS

  • Support Poe+ function

  • With powerful historical warning information and log information query and management functions

  • Support overload protection

  • Support reverse-link protection

  • Support optical port hot plug

  • Level of protection:IP40

  • ISO9000 Qualified

  • Pass test by Ministry of Public Security

  • Obtain network qualification certificate
