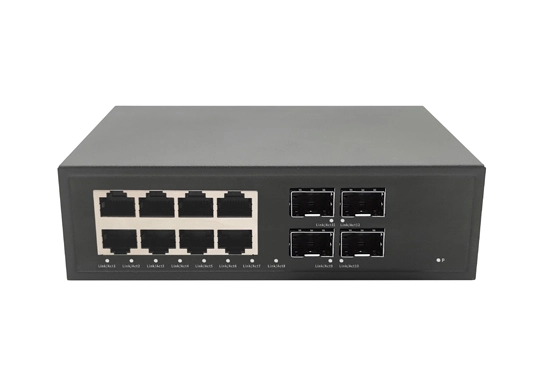

Managed 4-Port 10G SFP + 8-Port 1G Electrical PoE Switch F6C-5800-M8GT4XS

Beijing Fibridge Managed 4-Port 10G SFP + 8-Port 1G Electrical PoE Switch F6C-5800-M8GT4XS series network management switch is a high-performance ethernet access equipment developed by Beijing Fibridge. It has 8 ports 10/100/1000Mbps RJ45 and 4 ports 1G/5G/10Gbps SFP+.

With corresponding network management software, it can realize management functions such as Port Status Query, port configuration, configuration download, upload, system log and alarm record display. The switch can be built-in network management module, providing Ethernet network management interface, supports smart WEB management.

The device is built-in power module, providing  220V AC input or 12V DC input for options. The working temperature is -10ºC~+65ºC, working humidity is 5%~90%.

F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet.

Specification of Managed 4-Port 10G SFP + 8-Port 1G Electrical PoE Switch F6C-5800-M8GT4XS

Network Characteristics
Ethernet ProtocolSupport IEEE802.3/802.3u/802.3x/802.3Z/802.3AB storage-and-forward
Flow ControlIEEE802.3x flow control, back pressure flow control
Network InterfaceEthernet port:10/100/1000MBase-T(X) auto adapt Ethernet RJ45 port
Optical port:1G/5G/10GBase-F(X) SFP+
VLANIEEE 802.1q VLAN
MAC Addresses16K
Jumbo FrameMax 16K
Cache12Mbit
Packet Buffer128Gbps
Packet Forwarding Rate95.232Mpps
ManagementWEB
Optical Characteristics
Optical InterfaceSFP+
Fiber Core CountSingle core/dual cores
Wavelength1310nm/1550nm(850nm)
Fiber ModeSM/MM
Environmental Characteristics
Temperature & HumidityWorking temperature: -10ºC to +65ºC
Storage temperature: :-40ºC to 75ºC
Working humidity:5%~90% RH No condensation
Storage humidity: 5%~95% RH No condensation
PowerAC 100-240V/50-60Hz 260W Built-in switching power supply
MTBF≥50000 hours
Mechanical Characteristics
Dimension333mm*195mm*45mm 410mm*278mm*95mm
Net/Gross Weight1.82 /2.46 kg


 Managed 4-Port 10G SFP + 8-Port 1G Electrical PoE Switch F6C-5800-M8GT4XS Features

  • Support IEEE802.3i/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3at/802.3af/802.1p storage-and-forward

  • Support Web management

  • Support enquiry and configuration to each port status, including link status, speed, duplex, close.

  • Support QOS

  • Support VLAN

  • Support port mirror, port isolation

  • Support loop test, loop prevention

  • Support IPv4

  • Support ring network STP, RSTP

  • Support IGMP intercept, DHCP intercept

  • Support link convergence

  • Support storms restrain

  • Support EEE

  • Support bandwidth control

  • Support jumbo frame

  • Support optical port hot plug

  • Support thunder proof 6kv

  • Protect level:IP30

  • ISO9000 qualified

  • Pass test by Ministry of Public Security

  • Obtain network qualification certificate


Ordering Information of Managed 4-Port 10G SFP + 8-Port 1G Electrical PoE Switch F6C-5800-M8GT4XS

ModelPortManagement
F6C-5800-M8GT4XS8*10/100/1000MBase-T(X) RJ45 ports
4*1G/5G/10GBase-F(X) SFP+ optical ports
Web
