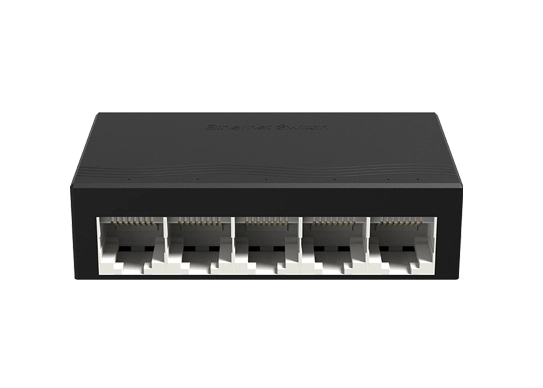

Unmanaged 5-Port 2.5G Electrical PoE Switch

Beijing Fibridge unmanaged 5-Port 2.5G Ethernet PoE switch provides 4*10M/100M/1G/2.5G PoE Ports and 1*10M/100M/1G/2.5G Uplink RJ45 Port. The switch supports port auto adaptation for instant plug and use. It can be instantly used once network cable is connected, no need to be configured. It provides smart and convenient transmission for users. Each port of the switch enhances massive flow's forwarding capability, supports comprehensive compatibility, to meet more wide application.

Unmanaged 5-Port 2.5G Electrical PoE Switch Features

  • Backplane bandwidth: 80Gbps

  • Packet Forward Rate: 29.76Mpps

  • MAC address table: 16K

  • High speed buffer: 12M

  • Flexible networking

  • 2.5G access

  • Intelligent CPU

  • Support 802.3 af/at

  • Support port auto adapt

  • Instant plug and use, no need to configure

  • Auto-adapt to fix port, with highly stable link


Unmanaged 5-Port 2.5G Electrical PoE Switch Specification

Model

F6C-5800-5MEP

Product name

5-Port 2.5G PoE   switch

Ports

5*10M/100M/1000M/2.5G   RJ45 PoE ports

PoE Ports

1 port supports   IEEE802.3af/at/bt, max power consumption 90W

2-4 ports support   IEEE802.3af/bt, max power consumption 30W

Protocol

IEEE 802.3/U、IEEE 802.3ab、IEEE 802.3bz、IEEE 802.3x

Port speed

10M/100M/1000M/2.5G   Auto

Backplane bandwidth

80Gbps

Package forward   rate

28.8Mpps

Package buffer

12M

Jumbo frame

Up to 12Kb

Power

Adapter; max   650W(AC100-240V 50/60HZ max0.9A)

Working temperature   and humidity

0~+40°C;10%~90% RH no condensation

Storage temperature   and humidity

-40~+75°C;5%~90% RH no condensation

Dimension

160mm*112mm*31mm/193mm*131mm*91mm

Net/gross weight

0.58kg/1.09kg

Installation

Desktop(wall and   device hook parts optional)

Thunder proof   level

Port thunder   proof: 6KV 8/20u

Warranty

1 year
