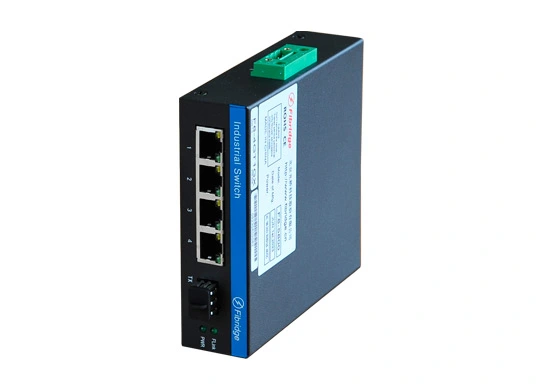

1-Port 1000M Fx + 4-Port 1000M Tx Media Converter

Fibridge F6-4GT1GX series network management switch is a high-performance ethernet access equipment developed by Beijing Fibridge. It has 4 10/100/1000 mbps Ethernet interfaces and a 1000 mbps optical port. The device is built-in power module, you can choose 220V AC input or 12V DC input products. The F6 series is compact desktop design, small size, light weight, easy to place on desktop or in cabinet.

1-Port 1000M Fx + 4-Port 1000M Tx Media Converter Specification


Network Characteristics
Ethernet ProtocolSupport IEEE802.3/802.3u/802.3x/802.3az
Flow ControlIEEE802.3x flow control
Network InterfaceOPT: 1000MBase-FX Single/multimode SC/FC/SFP
ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLANNo
MAC Addresses4K
Huge FrameMax size 9216
CacheNO
Packet Buffer12Gbps
Packet Forwarding Rate8.688Mpps
ManagementNo
Optical Characteristics
Optical InterfaceSC/FC/SFP(Optional)
Fiber Core CountSingle / Dual core transmission
Wavelength1310nm/1550nm(850nm)
Fiber ModeSingle Mode / Multimode
Environmental Characteristics
Temperature & HumidityWorking temperature: -10℃~50℃
Storage temperature: -40℃~75℃
Working humidity: 10%~90% RH No condensation
Storage humidity: 5%~90% RH No condensation
PowerAC 100-240V/50-60Hz Built-in switching power supply,
DC12V 1A External power supply
MTBF≥100000 hours




 1-Port 1000M Fx + 4-Port 1000M Tx Media Converter Features

  • Support IEEE802.3/802.3u/802.3x/802.3az forward mode.

  • Support for Port auto-negotiation.

  • Support flow control.

  • Industrial & Modular design make the equipment reliable and flexible.

  • Support overload protection.

  • Anti-link protection is supported.

  • Support optical hot plug.

  • ISO9000 quality system certified.

  • Pass the ministry of public security testing.

  • Obtain network qualification certificate.
