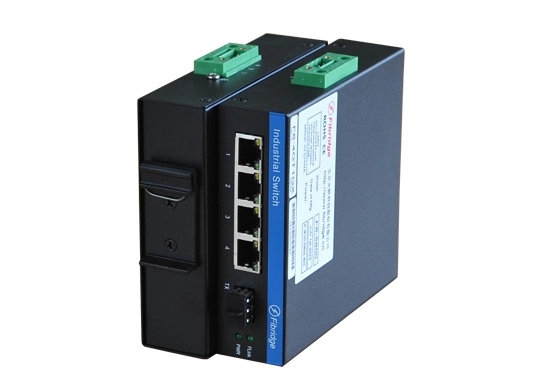

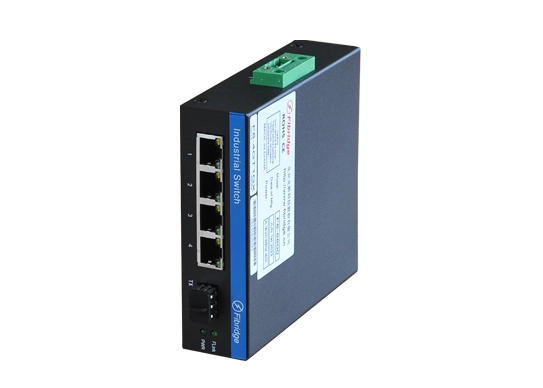

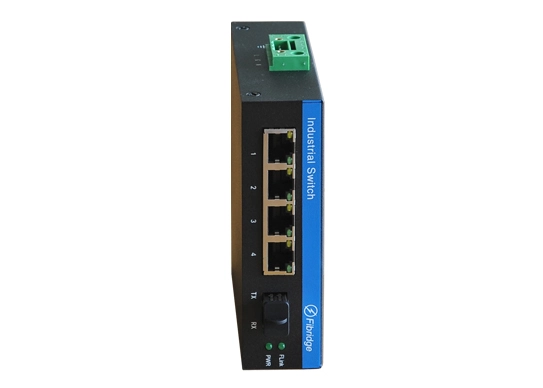

1-Port 100M Fx + 4-Port 100M Tx Media Converter

Fibridge F6-4TX1FX series network management switch is a high-performance ethernet access equipment developed by Beijing Fibridge. It has 4 10 / 100 mbps Ethernet interfaces and a 100 mbps optical port.The device is built-in power module, you can choose 220V AC input or 12V DC input products.The F6 series is compact desktop design, small size, light weight, easy to place on desktop or in cabinet.

1-Port 100M Fx + 4-Port 100M Tx Media Converter Specification

Network Characteristics


Ethernet Protocol

Support IEEE802.3/802.3u/802.3x/802.3az,   store and forward

Flow Control

IEEE802.3x flow   control, back pressure flow control

Network Interface

OPT:   100MBase-FX Single/multimode SC/FC/SFP/1*9
ETH: 10/100MBase-T(X)Adaptive Ethernet RJ45 port

VLAN

No

MAC Addresses

1K

Jumbo Frame

No

Cache

448Kbit

Packet   Buffer

1Gbps

Packet Forwarding Rate

0.744Mpps

Management

No

Optical Characteristics


Optical Interface

SC/FC/SFP/1*9(Optional)

Fiber Core Count

Single   / Dual core transmission

Wavelength

850n/1310/1550nm

Fiber Mode

Single   Mode / Multimode

Environmental   Characteristics


Temperature & Humidity

Working   temperature: -40ºC~70ºC
  Storage temperature:-40ºC~85ºC
  Working humidity:10%~90% RH No condensation
  Storage humidity:5%~90% RH No condensation

Power

AC   100-240V/50-60Hz Built-in switching power supply,
  DC12V 1A External power supply

MTBF

≥100000 hours

Mechanical Characteristics


Structural Dimension

150× 118× 48mm

Product Weight

0.6kg


Features  of 1-Port 100M Fx + 4-Port 100M Tx Media Converter

  • Support IEEE802.3/802.3u/802.3x/802.3az forward mode.

  • Support Port auto-negotiation.

  • Support flow control.

  • Support overload protection.

  • Support reverse-link protection

  • Support optical port hot plug.

  • ISO9000 quality system certified

  • Pass the ministry of public security testing

  • Network qualification access certified


Ordering Information of 1-Port 100M Fx + 4-Port 100M Tx Media Converter

Model

Ports

Management

F6-4TX1FX

4*10/100M auto   adapt RJ45 ports

1*10/100MBase-FX   SFP/SC optical port

N/A
