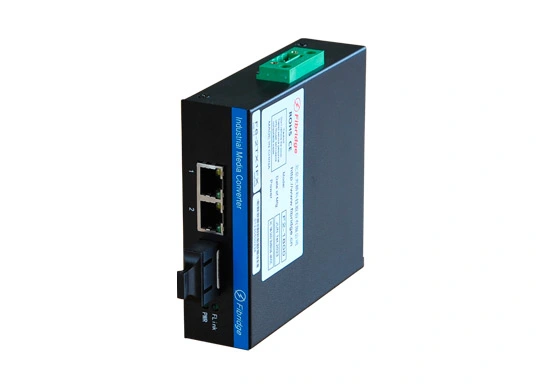

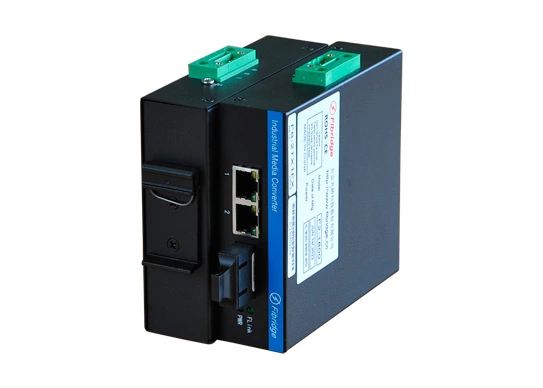

1-Port 100M Fx + 2-Port 100M Tx Media Converter

Fibridge F6-2TX1FX series network management switch is a high-performance ethernet access equipment developed by Beijing Fibridge. It has 2 10 / 100 mbps Ethernet interfaces and a 100 mbps optical port.The device is built-in power module, you can choose 220V AC input or 12V DC input products.The F6 series is compact desktop design, small size, light weight, easy to place on desktop or in cabinet.

 1-Port 100M Fx + 2-Port 100M Tx Media Converter Specification


Network Characteristics
Ethernet ProtocolSupport IEEE802.3/802.3u/802.3x/802.3az
Flow ControlIEEE802.3x flow control
Network InterfaceOPT: 100MBase-FX Single/multimode SC/FC/SFP/1*9
ETH: 10/100MBase-T(X)Adaptive Ethernet RJ45 port
VLANNo
MAC Addresses1K
Huge FrameNo
Cache448Kbit
Packet Buffer0.6Gbps
Packet Forwarding Rate0.4344Mpps
ManagementNo
Optical Characteristics
Optical InterfaceSC/FC/SFP/1*9(Optional)
Fiber Core CountSingle / Dual core transmission
Wavelength850nm
Fiber ModeSingle Mode / Multimode
Environmental Characteristics
Temperature & HumidityWorking temperature: -10℃~50℃
Storage temperature: -40℃~75℃
Working humidity: 10%~90% RH No condensation
Storage humidity: 5%~90% RH No condensation
PowerAC 100-240V/50-60Hz Built-in switching power supply,
DC12V 1A External power supply
MTBF≥100000 hours




1-Port 100M Fx + 2-Port 100M Tx Media Converter Features

  • Support IEEE802.3/802.3u/802.3x/802.3az forward mode.

  • Support for Port auto-negotiation.

  • Support flow control.

  • Industrial & Modular design make the equipment reliable and flexible.

  • Support overload protection.

  • Anti-link protection is supported.

  • Support light hot plug.

  • Obtain ISO9000 quality system certificate.

  • Pass the ministry of public security testing.

  • Obtain network qualification certificate.
