8 port gigabit switch managed
8 port gigabit switch managed

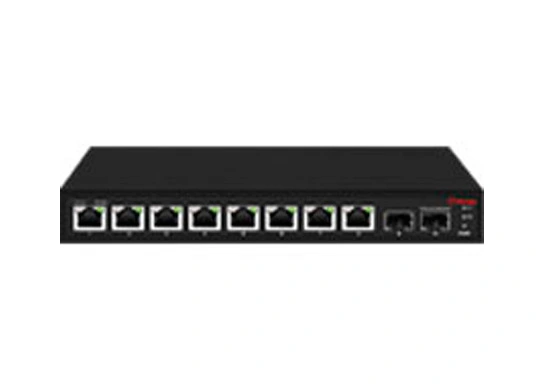

2-Port 1000M SFP + 8-Port 1000M Tx Managed Switch

Fibridge F6-M8GT2GX series network management switch is a high-performance ethernet access equipment developed by Beijing Fibridge. It has 8 10/100/1000 Mbps Ethernet interfaces and 2 1000 Mbps optical ports. With corresponding network management software, it can realize management functions such as Port Status Query, port configuration, configuration download, upload, system log and alarm record display. F6-M8GT2GX series switches can be built-in network management module, providing Console and Ethernet two kinds of network management interface. The product supports Console, WEB, Telnet, SNMP and other network management methods. The device is built-in power module, providing  220V AC input or 12V DC input for options. F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet.

Contact

2-Port 1000M SFP + 8-Port 1000M Tx Managed Switch Specification


Network Characteristics
Ethernet ProtocolSupport IEEE802.3/802.3u/802.3x/802.3az
Flow ControlIEEE802.3x flow control
Network InterfaceOPT: 1000MBase-FX Single/multimode SC/FC/SFP
ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLANSupport IEEE 802.1q VLAN, QinQ, Protocol VLAN
MAC Addresses16K
Huge FrameMax size 9K
Cache4Mb
Packet Buffer20Gbps
Packet Forwarding Rate14.88Mpps
ManagementSupport WEB, Telnet, Console
Optical Characteristics
Optical InterfaceSC/FC/SFP(Optional)
Fiber Core CountSingle / Dual core transmission
Wavelength1310nm/1550nm（850nm）
Fiber ModeSingle Mode / Multimode
Environmental Characteristics
Temperature & HumidityWorking temperature：-10℃～55℃
Storage temperature：-40℃～85℃
Working humidity：10%～90% RH No condensation
Storage humidity：5%～90% RH No condensation
PowerAC 100-240V/50-60Hz Built-in switching power supply，
DC48~56V 1.5A External power supply(PoE),
DC12V 1A External power supply
MTBF≥100000 hours




Features of 2-Port 1000M SFP + 8-Port 1000M Tx Managed Switch

  • Support IEEE802.3/802.3u/802.3x/802.3az store-and-forward mode.

  • Reliable work in harsh electrical environment.

  • Support auto-negotiation.

  • Support SNMP, Telnet, Web and CLI Management.

  • Support to query and configure the status of each port, including connection status, rate, duplex, closed.

  • Support flow control.

  • Support Port Mirroring.

  • Support storm control.

  • Support Qos.

  • Support VLAN.

  • Support Link back out test.

  • Support IP / Mac / Port binding.

  • Support Ring STP, RSTP.

  • With powerful historical warning information and log information query and management functions.

  • Support overload protection.

  • Support Anti-link protection.

  • Support optical hot plug.

  • Obtain ISO9000 quality system certificate.

  • Pass the ministry of public security testing.

  • Obtain network qualification certificate.
