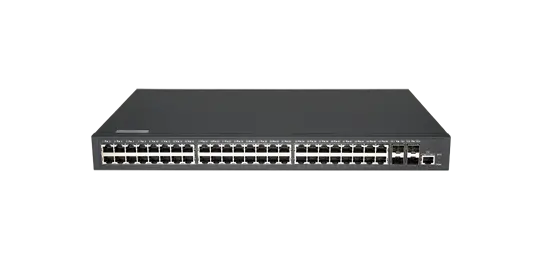

f6c 5800 m48gt4sfront 543
f6c 5800 m48gt4sfront 543

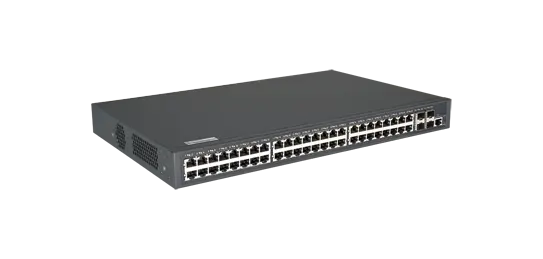

f6c 5800 m48gt4sleft 543

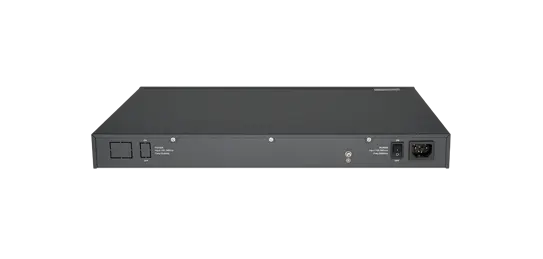

f6c 5800 m48gt4sback 543

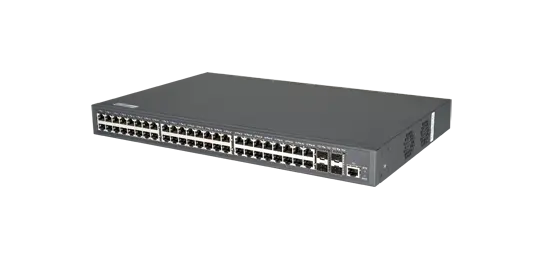

f6c 5800 m48gt4s right 543

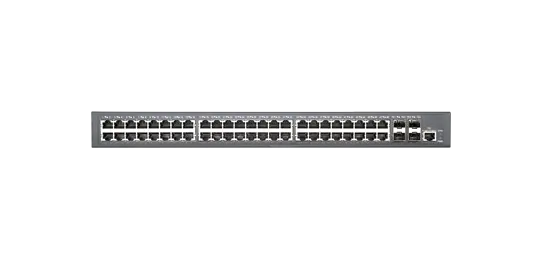

f6c 5800 m48gt4spanel 543

Managed 4 Giga OPT and 48 1000M PoE Switch F6C-5800-M48GTP4S

Fibridge F6C-5800-M48GTP4S managed network switch is a high-performance Managed Ethernet access equipment developed by Beijing Fibridge. It has 48* 10/100/1000 Mbps PoE Ethernet interface and 4*Gigabit FX. PoE outputs 4*BT+44*AF/AT.


With corresponding network management software, it can realize the management functions such as Port Status Query, port configuration, configuration download, upload, system log and alarm record display. F6C-5800-M48GTP4S series is layer3 switch, can be embedded with management module, providing Console and Ethernet two types of management connectors, supporting Console, WEB, Telnet and SNMP management.


The device is built-in power module, you can choose 220V AC input or 12V DC input.The F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet. The series' working temperature is 0ºC to +70ºC,10%~90(no condensation).

 Managed 4 Giga OPT and 48 1000M PoE Switch F6C-5800-M48GTP4S Features

  • IEEE802.3i/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3at/802.3af/802.1p storage-and-forward.

  • Meet the requirements of reliable work in harsh electrical environment.

  • Support SNMP, Telnet, Web and CLI Management Methods.

  • Support enquiry and configuration to the status of each port, including connection status, rate, duplex, closed, Port.

  • Support port mirror.

  • Support flow control.

  • Support storm control.

  • Support QOS.

  • Support port VLAN,protocol VLAN,MAC VLAN,voice VLAN.

  • Support loop link testing.

  • Support IP/MAC/Port bunding.

  • Support ACL.

  • Support RING network STP,RSTP,MSTP,ERPS.

  • Support LLDP protocol.

  • Support powerful historical alarm log.

  • Support log information inquiry and management.

  • Support flow statistics, display each port's communication status real time.

  • Support Layer 3 port and routing function.

  • Support attack-prevention configuration.

  • Support overload protection.

  • Support reverse connection protection.

  • Support optical port hot plug.

  • Support PoE, outputs 4*BT+44*AF/AT.

  • ISO9000 Qualified.

  • Pass test by Ministry of Public Security.

  • Obtain network qualification certificate.

PoE Features of Managed 4 Giga OPT and 48 1000M PoE Switch F6C-5800-M48GTP4S

  • Support IEEE802.3af and IEEE802.3at

  • POE++ IEEE802.3bt optional

  • IEEE802.3af standard 15.4w

  • IEEE802.3at standard 30w

  • Optional POE++ IEEE802.3bt max 90w

  • External POE Power Supply DC48/52v, external POE power adaptor up to 600w as accessory

  • Internal POE Power AC 90-240v,Maximum 1200w inside for 1U type

  • 4kv POE port anti-lightning


 Managed 4 Giga OPT and 48 1000M PoE Switch F6C-5800-M48GTP4S Specification

Network Characteristics
Ethernet ProtocolSupport IEEE802.3/802.3u/802.3x/802.3Z/802.3AB storage-and-forward
Flow ControlIEEE802.3x flow control, back pressure flow control
Network InterfaceOPT: 1000MBase-FX Single/multimode SC/FC/SFP
ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLANIEEE 802.1q VLAN, protocol VLAN, Voice VLAN
MAC Addresses12K
Jumbo FrameMax size 9k
Cache64Mbit
Packet Buffer128Gbps
Packet Forwarding Rate95Mpps
ManagementWEB, Telnet, Console, SNMP
Optical Characteristics
Optical InterfaceSC/FC/SFP(Optional)
Fiber Core CountSingle / Dual core transmission
Wavelength1310nm/1550nm(850nm)
Fiber ModeSingle Mode / Multimode
Environmental Characteristics
Temperature & HumidityWorking temperature: 0ºC to +70ºC
Storage temperature: :-40ºC to 85ºC
Working humidity:10%~90% RH No condensation
Storage humidity: 5%~90% RH No condensation
PowerAC 100-240V/50-60Hz Built-in switching power supply,
DCDC48~56V 1.5A External power supply(PoE)
DC12V 1A External power supply
MTBF≥100000 hours
Machinery Characteristics
Dimension440mm*360mm*45m   553mm*403mm*93mm
Net/Gross Weight5.56  / 6.35Kg


Ordering Information of Managed 4 Giga OPT and 48 1000M PoE Switch F6C-5800-M48GTP4S

ModelPortManagement
F6C-5800-M48GTP4S48*10/100/1000MBase-T(X)auto adapt Ethernet  RJ45 PoE 4*BT+44*AF/AT
4* Giga Base-Fx SFP
Web
Telnet
Console
