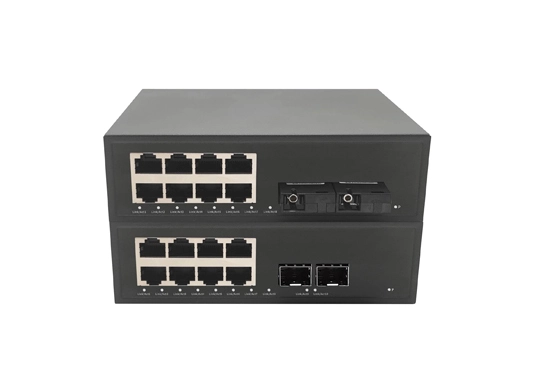

Name: 2-Port 1000M SFP + 8-Port 1000M Tx Unmanaged Switch
Brand: Beijing Fibridge Co., Ltd.

2-Port 1000M SFP + 8-Port 1000M Tx Unmanaged Switch

Fibridge F6C-5800-8GT2S series network switch is a high-performance Ethernet access equipment developed by Beijing Fibridge. It has 8* 10/100/1000 Mbps Ethernet interface and 2*Gigabit FX. The device is built-in power module, you can choose 220V AC input or 12V DC input.The F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet. The series' working temperature is 0ºC to +70ºC,10%~90(no condensation).

2-Port 1000M SFP + 8-Port 1000M Tx Unmanaged Switch Specification

Network Characteristics
Ethernet Protocol	Support IEEE802.3/802.3u/802.3x/802.3Z/802.3AB storage-and-forward
Flow Control	IEEE802.3x flow control, back pressure flow control
Network Interface	OPT: 1000MBase-FX Single/multimode SC/FC/SFP ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLAN	No
MAC Addresses	4K
Jumbo Frame	NO
Cache	4M
Packet Buffer	20Gbps
Packet Forwarding Rate	14.88Mpps
Management	No
Optical Characteristics
Optical Interface	SC/FC/SFP(Optional)
Fiber Core Count	Single / Dual core transmission
Wavelength	1310nm/1550nm(850nm)
Fiber Mode	Single Mode / Multimode
Environmental Characteristics
Temperature & Humidity	Working temperature: 0ºC to +70ºC Storage temperature: -20ºC~85ºC Working humidity:10%~90% RH No condensation Storage humidity: 5%~90% RH No condensation
Power	AC 100-240V/50-60Hz Built-in switching power supply, DCDC48~56V 1.5A External power supply(PoE) DC12V 1A External power supply
MTBF	≥100000 hours

Features of 2-Port 1000M SFP + 8-Port 1000M Tx Unmanaged Switch

Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3at/802.3af/802.1p storage-and-forward mode;
Reliable performance
Support for Port auto-negotiation;
Support flow control;
PoE optional
Modular design make the equipment reliable and flexible;
Support overload protection;
Reverse-link protection.
Support optical port hot plug
ISO9000 Qualified
Pass test by Ministry of Public Security
Obtain network qualification certificate

Ordering Information of 2-Port 1000M SFP + 8-Port 1000M Tx Unmanaged Switch

Model	Port	Management
F6C-5800-8GT2S	810/100/1000MBase-T(X)auto adapt Ethernet RJ45 21000MBase-FX SFP	None
F6C-5800-8GTP2S	8IEEE802.3at/af standard PoE Ports 21000MBase-FX SFP	None
