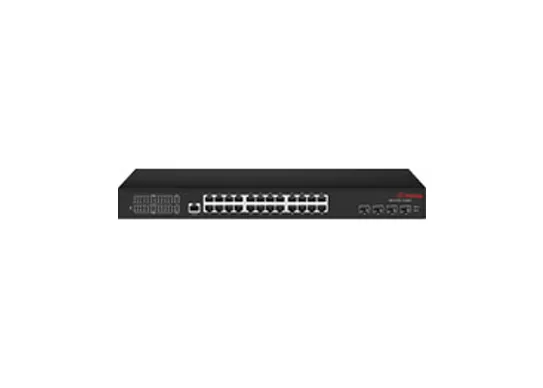

24 1000Base-Tx PoE and 4 1000Base-Fx Switch
24 1000Base-Tx PoE and 4 1000Base-Fx Switch

24 1000Base-Tx PoE and 4 1000Base-Fx Switch

Fibridge F6C-5800-24GTP4S series network switch is a high-performance Ethernet access equipment developed by Beijing Fibridge. It has 24* 10/100/1000 Mbps PoE Ethernet interface and 4*Gigabit FX.


The device is built-in power module, you can choose 220V AC input or 12V DC input. F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet. The series' working temperature is 0ºC to +70ºC,10%~90(no condensation).


Features of 24 1000Base-Tx PoE and 4 1000Base-Fx Switch

  • IEEE802.3i/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3at/802.3af/802.1p storage-and-forward.

  • Meet the requirements of reliable work in harsh electrical environment.

  • Support flow control.

  • Support overload protection.

  • Support reverse connection protection.

  • Support optical port hot plug.

  • Support PoE, outputs 4*BT+44*AF/AT.

  • ISO9000 Qualified.

  • Pass test by Ministry of Public Security.

  • Obtain network qualification certificate.


PoE Features of 24 1000Base-Tx PoE and 4 1000Base-Fx Switch

  • Support IEEE802.3af and IEEE802.3at

  • POE++ IEEE802.3bt optional

  • Power budget 720W

  • IEEE802.3af standard 15.4w

  • IEEE802.3at standard 30w

  • Optional POE++ IEEE802.3bt max 90w

  • External POE Power Supply DC48/52v, external POE power adaptor up to 600w as accessory

  • Internal POE Power AC 90-240v, Maximum 1200w inside for 1U type

  • 4kv POE port anti-lightning


Technical Specifications of 24 1000Base-Tx PoE and 4 1000Base-Fx Switch

Network Characteristics

Ethernet Protocol

Support IEEE802.3/802.3u/802.3x/802.3Z/802.3AB storage-and-forward

Flow Control

IEEE802.3x flow control, back pressure   flow control

Network Interface

OPT: 1000MBase-FX Single/multimode   SC/FC/SFP
  ETH: 10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port

VLAN

N/A

MAC Addresses

12K

Jumbo Frame

Max size 9k

Cache

4Mbit

Switch capacity

56Gbps

Packet Forwarding Rate

41.664Mpps

Optical Characteristics

Optical Interface

SC/FC/SFP(Optional)

Fiber Core Count

Single / Dual core transmission

Wavelength

1310nm/1550nm(850nm)

Fiber Mode

Single Mode / Multimode

Environmental Characteristics

Temperature & Humidity

Working temperature: 0ºC to +70ºC
  Storage temperature: -40ºC to 85ºC
  Working humidity:10%~90% RH No condensation
  Storage humidity: 5%~90% RH No condensation

Power

AC 100-240V/50-60Hz Built-in switching   power supply,
  DCDC48~56V 1.5A External power supply (PoE)
  DC12V 1A External power supply

MTBF

≥100000 hours


Ordering Information of 24 1000Base-Tx PoE and 4 1000Base-Fx Switch

Model

Port

Management

F6C-5800-24GTP4S

24*10/100/1000MBase-T(X)auto   adapt Ethernet RJ45 PoE
  4* Giga Base-Fx SFP

N/A
