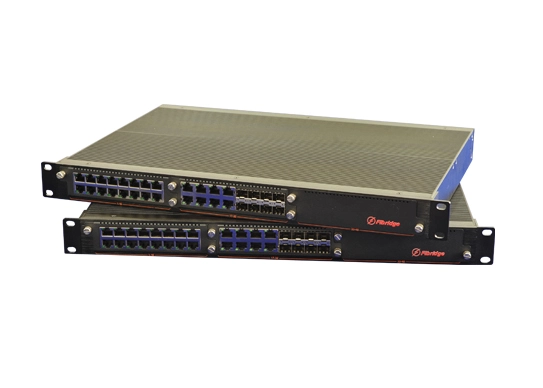

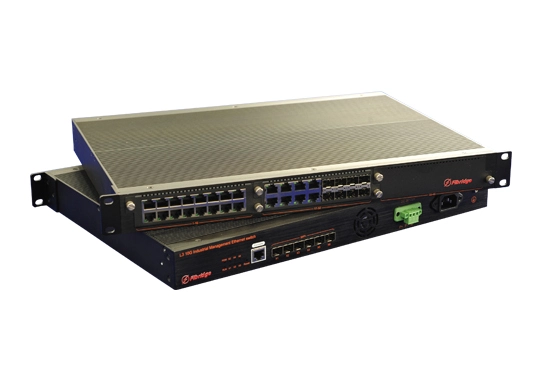

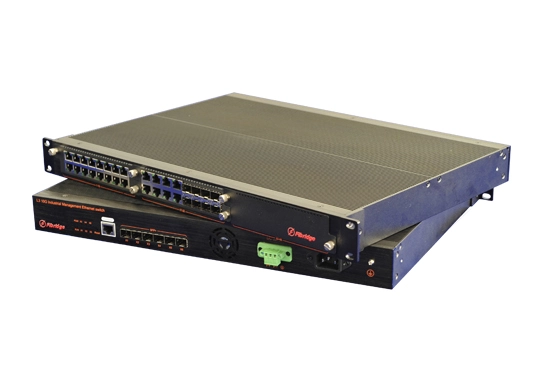

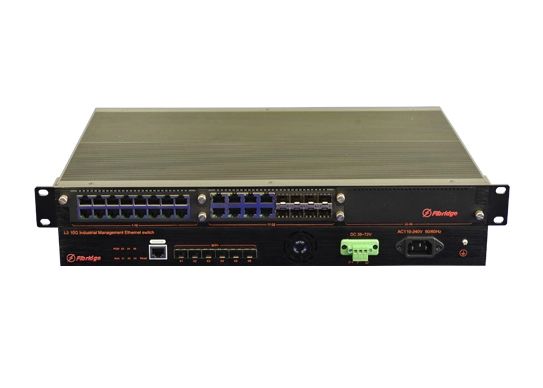

L3 6 10G SFP+ and 3x16 Giga Opt/Eth Managed Industrial Ethernet Switch

Product Features of L3 6 10G SFP+ and 3x16 Giga Opt/Eth Managed Industrial Ethernet Switch

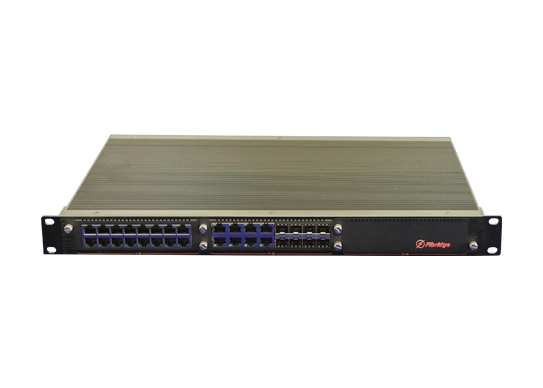

• Interface Specifications: 6 x 10G SFP+ optical ports and 3 x card slots, compatible with optional 16-port Gigabit SFP cards, 16-port Gigabit electrical port cards, or 8-port Gigabit optical + 8-port Gigabit electrical combo cards.

• Wide Temperature Operation: Ultra-wide operating temperature range of -40℃ to 70℃.

• Network Redundancy: Supports STP/RSTP/MSTP and ERPS (self-healing time < 20ms).

• Multicast Management: Supports IGMP Snooping/MLD Snooping.

• VLAN: Supports 802.1Q VLAN, QinQ, Voice VLAN, MAC VLAN, and IP VLAN.

• Link Aggregation: Supports static/dynamic link aggregation, providing optimal bandwidth utilization.

• Clock Synchronization: Supports PTP protocol.

• Security Management: Supports ACL (Access Control List) and 802.1X.

• Management Functions: Supports multiple management methods such as WEB, CLI, and SNMP.

• Monitoring and Maintenance: Supports port mirroring, interface status monitoring, and log management.

Function Features of L3 6 10G SFP+ and 3x16 Giga Opt/Eth Managed Industrial Ethernet Switch

Diverse Port Types and Flexible Port Expansion

The F7-5800-XST648M switch supports a variety of port types, meeting the networking requirements of large-scale network aggregation or small-to-medium-sized network cores.

Powerful Processing Capability

The F7-5800-XST648-M-SFP switch is equipped with a VCore-III MPS-based CPU, delivering robust and stable processing performance.

Comprehensive Security Control Strategies

Supports port-based user IP + MAC address authentication and port-based 802.1X authentication.

Supports Layer 3 and Layer 4 ACL (Access Control List) functions, effectively defending against ARP attacks and viruses.

Provides advanced storm control features to suppress broadcast, multicast, and unicast storms.

Features unique ARP intrusion detection to prevent increasingly prevalent "ARP spoofing attacks" by hackers or attackers through ARP packets.

Supports IP Source Guard to prevent illegal address spoofing, including MAC spoofing, IP spoofing, and MAC/IP spoofing, as well as DoS attacks caused by large-scale address spoofing.

Offers DHCP Snooping functionality, which establishes and maintains a DHCP Snooping binding table to track and locate DHCP users' MAC addresses, IP addresses, lease durations, and other information, resolving IP and port tracking issues for DHCP users.

Complete Reliability Protection Mechanism and Convenient Management

The F7-5800-XST648M switch employs CPU protection strategies to classify and rate-limit packets sent to the CPU, preventing illegal attack packets from consuming CPU resources.

Supports multiple spanning tree protocols such as STP, RSTP, and MSTP, ensuring fast convergence, improved fault tolerance, stable network operation, and load balancing of links, while optimizing network channel usage and enhancing redundancy link utilization.

Supports the industrial-grade Ethernet Ring Protection Protocol (ERPS), providing millisecond-level fast service switching to ensure uninterrupted operations. The protocol is simple, reliable, and offers high switching performance, easy maintenance, and flexible topology, greatly simplifying network management and planning.

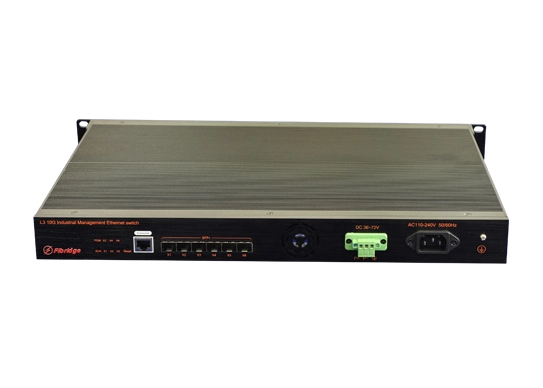

Utilizes industrial-grade components with lightning protection, overvoltage protection, and surge protection designs, along with dual power inputs, ensuring stable network operation under harsh weather conditions and unstable voltage environments.

Convenient Management and Maintenance

Features a simple and intuitive visual WEB interface (supporting HTTP and HTTPS protocols) for easy configuration and operation of various switch functions.

Supports SNMP V1/V2/V3 for device configuration and management.

Enables command-line configuration (CLI) via Telnet or Console port.

Supports secure management through encryption methods such as SSH2.0.

Supports LLDP (Link Layer Discovery Protocol) for simplified network management.

Supports NTP (Network Time Protocol) and PTP (1588v2) for automatic network time synchronization.

Technical Specification of L3 6 10G SFP+ and 3x16 Giga Opt/Eth Managed Industrial Ethernet Switch

Ordering Information of L3 6 10G SFP+ and 3x16 Giga Opt/Eth Managed Industrial Ethernet Switch

Notes:

1. This device includes the chassis and 3 boards as a complete unit.

2. The boards can be optionally configured with 16 electrical ports, 16 optical ports, or 8 optical and 8 electrical ports as needed.

3. The total number of RJ45 and SFP interfaces on the unit will vary depending on the selected board configuration.
