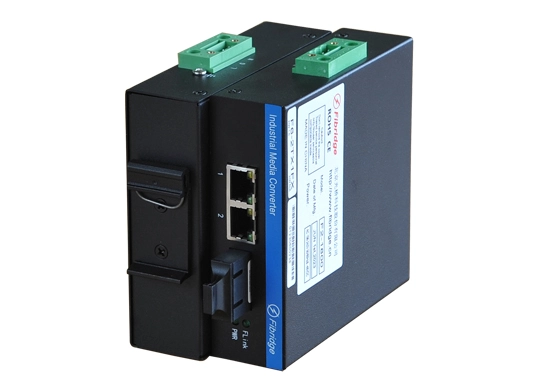

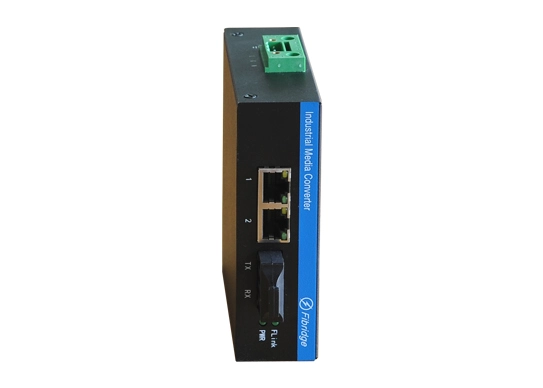

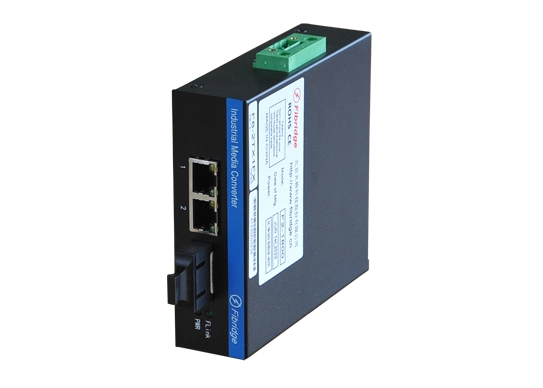

F6-2TX1FX DIN-RAIL Unmanaged 1-Port 100M Fx + 2-Port 100M Tx Industrial Switch

Fibridge F6-2TX1FX series network switch is a high-performance ethernet access equipment developed by Beijing Fibridge. It has 2 10 / 100 mbps Ethernet interfaces and a 100 mbps optical port.The device is built-in power module, you can choose 220V AC input or 12V DC input products.The F6 series is compact desktop design, small size, light weight, easy to place on desktop or in cabinet.

Specification of F6-2TX1FX DIN-RAIL Unmanaged 1-Port 100M Fx + 2-Port 100M Tx Industrial Switch

Network   Characteristics
Ethernet   ProtocolSupport IEEE802.3/802.3u/802.3x/802.3az
Flow   ControlIEEE802.3x   flow control
Network Interface

OPT: 100MBase-FX   Single/multimode SC/FC/SFP/1*9
ETH:  10/100MBase-T(X)Adaptive Ethernet RJ45 port

VLANNo
MAC   Addresses1K
Huge   FrameNo
Cache448Kbit
Packet   Buffer0.6Gbps
Packet   Forwarding Rate0.4344Mpps
ManagementNo
Optical   Characteristics
Optical   InterfaceSC/FC/SFP/1*9(Optional)
Fiber   Core CountSingle / Dual core transmission
Wavelength850nm
Fiber   ModeSingle Mode / Multimode
Environmental   Characteristics
Temperature & Humidity

Working temperature:-10℃~50℃

Storage temperature:-40℃~75℃

Working humidity:10%~90% RH No condensation

Storage humidity:5%~90% RH No condensation

Power

AC 100-240V/50-60Hz Built-in   switching power supply

DC12V   1A External power supply

MTBF≥100000 hours


Features of F6-2TX1FX DIN-RAIL Unmanaged 1-Port 100M Fx + 2-Port 100M Tx Industrial Switch

● Support IEEE802.3/802.3u/802.3x/802.3az forward mode;

● Support Port auto-negotiation;

● Support flow control;

● Industrial &Modular design make the equipment reliable and flexible;

● Support overload protection;

● Reverse-link protection is supported;

● Support optic hot plug;

● Obtain ISO9000 quality system certificate;

● Pass the Ministry of Public Security testing;

● Obtain  network qualification certificate ;
