Name: F6-5800-1TP(BT)1FX Unmanaged 1-Port 100M Opt and 1-Port 100M Poe Industrial Switch
Brand: Beijing Fibridge Co., Ltd.

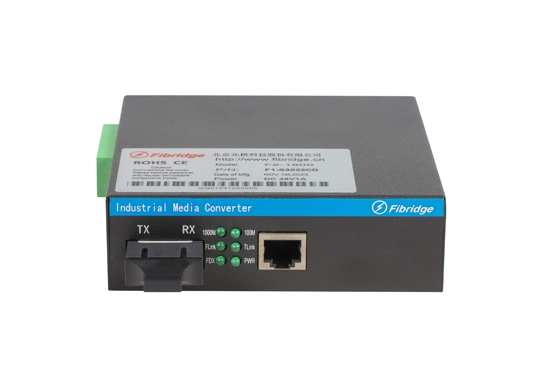

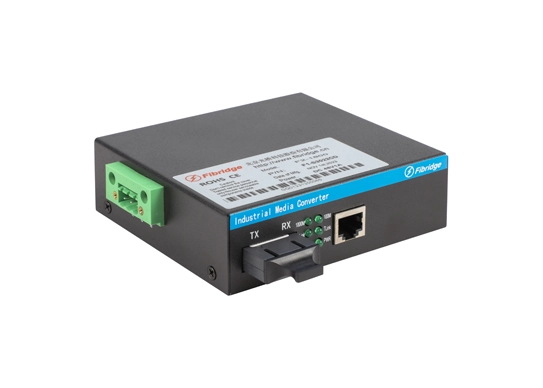

F6-5800-1TP(BT)1FX Unmanaged 1-Port 100M Opt and 1-Port 100M Poe Industrial Switch

Fibridge F6-5800-1TP(BT)1FX series network industrial switch is a high-performance ethernet access equipment developed by Beijing Fibridge. It has 1* 10/100 mbps Ethernet PoE interface and 1* 1000 mbps optical port.

The device is built-in power module, you can choose 220V AC input or DC12-57V input products.The switch supports af/at, af/at/bt PoE.

The device operates at a temperature of -40ºC~+85ºC Range and a humidity of %10~%90(No condensation).The F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet.

Specification of F6-5800-1TP(BT)1FX Unmanaged 1-Port 100M Opt and 1-Port 100M Poe Industrial Switch

Network Characteristics
Ethernet Protocol	Support IEEE802.3/802.3u/802.3x/802.3az straight mode
Flow Control	IEEE802.3x flow control, back pressure flow control

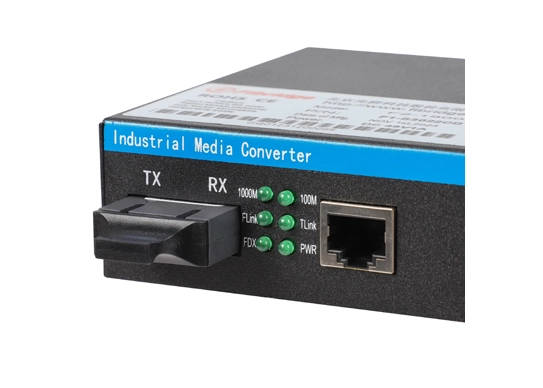

Network Interface	OPT: 100MBase-FX Single/multimode SC/FC/SFP/1*9
Network Interface	ETH: 10/100MBase-T(X)Adaptive Ethernet RJ45 port
VLAN	No
MAC Addresses	1K
Jumbo Frame	No
Cache	448Kbit
Packet Buffer	1Gbps
Packet Forwarding Rate	0.744Mpps
Management	No
Optical Characteristics
Optical Interface	1*9(Optional)
Fiber Core Count	Single / Dual core transmission
Wavelength	850nm
Fiber Mode	Single Mode / Multimode
Environmental Characteristics
Temperature & Humidity	Working temperature: -40ºC~85ºC
	Storage temperature:-40ºC~85ºC
	Working humidity:10%~90% RH No condensation
	Storage humidity:5%~90% RH No condensation

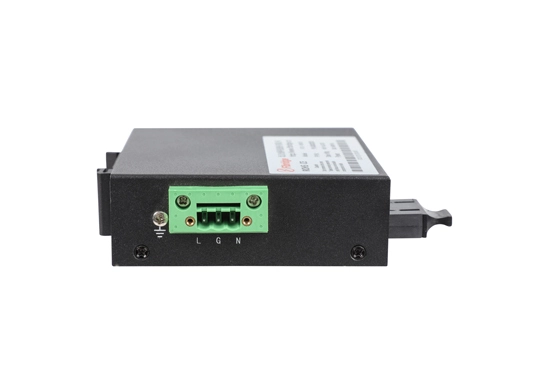

Power	AC 100-240V/50-60Hz Built-in switching power supply,
	DC48~56V 260W External power supply(PoE)
	DC12V 1A External power supply(not PoE)
MTBF	≥100000 hours

Specification of F6-5800-1TP(BT)1FX Unmanaged 1-Port 100M Opt and 1-Port 100M Poe Industrial Switch

Support IEEE802.3/802.3u/802.3x/802.3az straight mode
Meet the requirements of reliable work in harsh electrical environment
Support ethernet port auto-negotiation
Industrial &Modular design make the equipment reliable and flexible
Support overload protection
Supports af/at, af/at/bt PoE
Support Reverse-link protection
Support optical port hot plug
Level of protection:IP40
ISO9000 qualified
Product Passes testing of the Ministry of Public Security
Product obtains network qualification certificate

Ordering Information of F6-5800-1TP(BT)1FX Unmanaged 1-Port 100M Opt and 1-Port 100M Poe Industrial Switch

Model	Description	Management
F6-5800-1TP1FX	1FE af/at RJ45 1*100M 9-pin	None
F6-5800-1TP(BT)1FX	1FE af/at/bt RJ45 1*100M 9-pin	None
