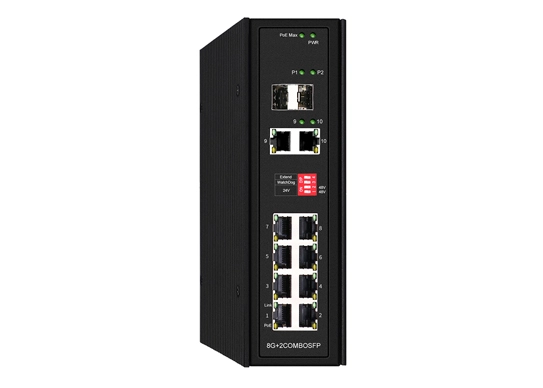

F6-5800-8P2SC Industrial Unmanaged 2 Giga Combo and 8 GE Ethernet PoE Switch

Fibridge  F6-5800-8P2SC series network industrial switch is a high-performance Ethernet access equipment developed by Beijing Fibridge. It has 8* 10/100/1000 Mbps PoE Ethernet interfaces and 2* 1000 Mbps Combo ports.


The device is built-in power module, providing 220V AC input or 12V-57V DC input options. F6-5800-8P2SC supports PoE+, applying DC40-57V 3A input power, outputs 1*af/at/bt and 7*af/at ports.


The device operates at a temperature of -40ºC~+85ºC Range and a humidity of %10~%90(No condensation).The F6 series is compact desktop design, small size, light weight, easy to place in desktop or cabinet.


Contact

Specification of F6-5800-8P2SC Industrial Unmanaged 2 Giga Combo and 8 GE Ethernet PoE Switch

Network     Characteristics
Ethernet   ProtocolSupport IEEE802.3/802.3u/802.3x/802.3Z/802.3AB   store-and-forward
Flow   ControlIEEE802.3x flow control,   pressure flow control
Network   InterfaceOPT: 1000MBase-FX   Single/multimode SC/FC/SFP
ETH:   10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLANN/A
MAC   Addresses4K
Jumbo   FrameN/A
CacheN/A
Packet   Buffer24Gbps
Packet   Forwarding Rate17.856Mpps
ManagementN/A
Optical   Characteristics
Optical   InterfaceSC/FC/SFP(Optional)
Fiber   Core CountSingle / Dual core transmission
Wavelength1310nm/1550nm(850nm)
Fiber   ModeSingle Mode / Multimode
Environmental   Characteristics
Temperature   & HumidityWorking   temperature: -40ºC~85ºC
Storage   temperature:-40ºC~85ºC
Working   humidity:10%~90% RH No condensation
Storage   humidity:5%~90% RH No condensation
PowerAC 100-240V/50-60Hz 260W   embedded switch power supply
DC48~56V   260W external DC power(PoE)
DC12V   1A external DC power(Not PoE)
MTBF≥100000 hours
Mechanical   Characteristics
Structural   Dimension187*130*50mm/280*165*79mm
Product   Weight1.28kg/1.46kg


Features of F6-5800-8P2SC Industrial Unmanaged 2 Giga Combo and 8 GE Ethernet PoE Switch

  • Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3at/802.3af/802.1p store-and-forward

  • Meet the requirements of reliable work in different environment

  • Support port auto adaptable

  • Support flow control

  • Supports PoE+, applying DC40-57V 3A input power, outputs 1*af/at/bt and 7*af/at ports.

  • Support overload protection

  • Support Reverse-link protection

  • Support optical port hot plug

  • Level of protection:IP40

  • Modular design makes the product more reliable and flexible

  • ISO9000 certified

  • Products pass testing of the Ministry of Public Security

  • Obtain network qualification certificate


Ordering Information of F6-5800-8P2SC Industrial Unmanaged 2 Giga Combo and 8 GE Ethernet PoE Switch

ModelPortsManagement
F6-5800-8P2SC7 10/100/1000M IEEE802.3at/af PoE ports
1 10/100/1000M IEEE802.3at/af/bt PoE port
 2 1000MBase Combo port		None
