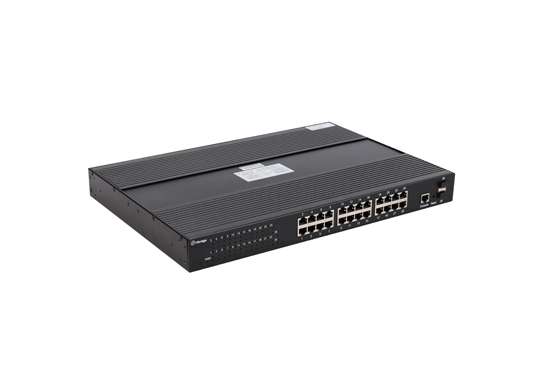

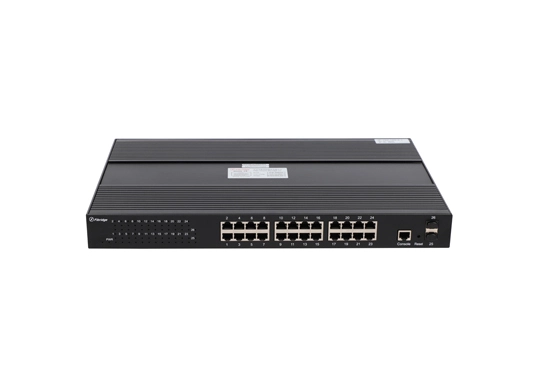

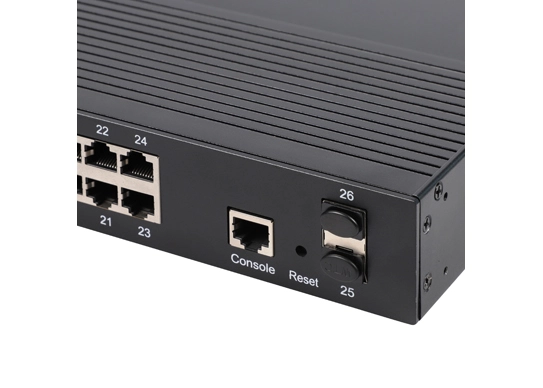

F6-M24GT2GX Industrial Managed 2 Giga OPT and 24 GE Ethernet Switch

Fibridge F6-M24GT2GX series network management industrial switch is a high-performance Ethernet access equipment developed by Beijing Fibridge. It has 24* 10/100/1000 Mbps Ethernet interfaces and 2* 1000 Mbps optical ports. With corresponding network management software, it can realize the management functions such as Port Status Query, port configuration, configuration download, upload, system log and alarm record display. F6-M24GT2GX series industrial switches can be built-in network management module, provides Console and Ethernet two kinds of network management interface, can support Console, WEB, Telnet and SNMP and other network management methods. The device is built-in power module, providing 220V AC input or 12V DC input options. Poe+ function is optional. The device operates at a temperature of -40ºC~+85ºC Range and a humidity of %10~%90(No condensation).The F6 series is compact desktop design, small size, light weight, easy to place in desktop or cabinet.


Specification of F6-M4GT2GX DIN-RAIL L2 Managed 2-Port 1000M Fx + 4-Port 1000M Fx Industrial Switch

     Network     Characteristics
Ethernet   ProtocolSupport IEEE802.3/802.3u/802.3x/802.3Z/802.3AB   storage and forward mode
Flow   ControlIEEE802.3x   flow control, back pressure flow control
Network InterfaceOPT: 1000MBase-FX   Single/multimode SC/FC/SFP
ETH:   10/100/1000MBase-T(X)Adaptive Ethernet RJ45 port
VLANSupport IEEE 802.1q VLAN
MAC   Addresses12K
Jumbo   FrameMax size 9K
Cache4MB
Packet   Buffer52Gbps
Packet   Forwarding Rate38.688Mpps
ManagementSupport WEB,Telnet,Console,SNMP
Optical   Characteristics
Optical   InterfaceSC/FC/SFP(Optional)
Fiber   Core CountSingle / Dual core transmission
Wavelength1310nm/1550nm(850nm)
Fiber   ModeSingle Mode / Multimode
Environmental   Characteristics
Temperature   & HumidityWorking temperature:-40ºC~85ºC
Storage   temperature:-40ºC~85ºC
Working   humidity:10%~90% RH No condensation
Storage   humidity:5%~90% RH No condensation
PowerAC 100-240V/50-60Hz Built-in   switching power supply,
DC48~56V   1.5A External power supply(PoE),
DC12V   1A External power supply
MTBF≥100000 hours
Mechanical   Characteristics
Structural   Dimension188× 161× 48mm
Product   Weight1.2kg


Features of F6-M4GT2GX DIN-RAIL L2 Managed 2-Port 1000M Fx + 4-Port 1000M Fx Industrial Switch

  • Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.3at/802.3af/802.1p storage and forward mode;

  • Meet requirements of reliable work in harsh electrical environment;

  • Support SNMP, Telnet, Web and CLI Management Methods;

  • Support function of enquery and configuration to the status of each port, including connection status, rate, duplex, closed,Port Mirroring,storm control, etc.

  • Support flow control;

  • Support IPv4/IPv6;

  • Support IGMPv1/2/3 and MLDv1/2 Snooping;

  • Support registration of GMRP protocol

  • Support ACL;

  • Support SSH V1/V2/HTTPS;

  • Support ROMN;

  • Support security access control, support RADIUS/TRCACS;

  • Support STP/RSTP/MSTP/EAPS/ERPS;

  • Support Poe+ function;

  • Provide powerful historical warning information and log information query and management functions;

  • Support overload protection;

  • Support reverse-link protection;

  • Support optical hot plug;

  • Level of protection:IP40

  • ISO9000 Qualified

  • Pass test by Ministry of Public Security

  • Obtain network qualification certificate
