Industrial DIN-rail Power supply 240W Series

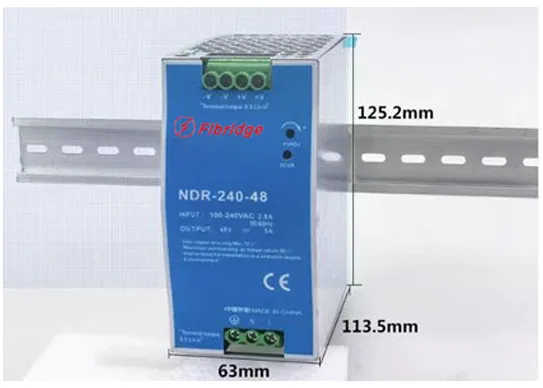

The product is an economical, slim-profile, 240W DIN rail power supply compliant with German industrial standards. It is designed for installation on TS-35/7.5 or TS-35/15 rails, featuring a compact 63mm width to save space in control cabinets.


The entire series supports a wide-range AC input from 90Vac to 264Vac and suitable for harmonic current emissions.


Encased in a metal housing for enhanced heat dissipation, the device achieves up to 90% efficiency. With proper airflow, it operates reliably in ambient temperatures ranging from -20°C to 70°C. It features constant current mode overload protection, making it suitable for various inductive or capacitive load applications.


Equipped with comprehensive protection functions the product stands as a highly competitive power solution for industrial applications.

Features of Industrial DIN-rail Power supply 240W Series

  • Universal full-range AC input

  • Active PFC function

  • Protections: Short circuit / Overload / Over voltage / Over temperature

  • Natural air cooling

  • Mountable on TS-35/7.5 or 15

  • UL508 (Industrial Control Equipment) certified

  • BS EN/EN61000-6-2 (BS EN/EN50082-2) Industrial immunity

  • 100% full load aging test

  • 3-year warranty


Main Applications of Industrial DIN-rail Power supply 240W Series

  • Industrial control systems

  • Semiconductor manufacturing equipment

  • Factory automation

  • Electromechanical equipment


Function Description of Industrial DIN-rail Power supply 240W Series

The product is an economical, slim-profile, 240W DIN rail power supply compliant with German industrial standards. It is designed for installation on TS-35/7.5 or TS-35/15 rails, featuring a compact 63mm width to save space in control cabinets.


The entire series supports a wide-range AC input from 90Vac to 264Vac and suitable for harmonic current emissions.


Encased in a metal housing for enhanced heat dissipation, the device achieves up to 90% efficiency. With proper airflow, it operates reliably in ambient temperatures ranging from -20°C to 70°C. It features constant current mode overload protection, making it suitable for various inductive or capacitive load applications.


Equipped with comprehensive protection functions the product stands as a highly competitive power solution for industrial applications.


Electrical Specifications of Industrial DIN-rail Power supply 240W Series

NDR-240 240W Rail Type Switching   Power Supply

Project

Technical Index

Output

DC voltage

12V

24V

48V

Rated current

20A

10A

5A

Rated power

240W

240W

240W

Ripple and noise

<120mV

<120mV

<150mV

Voltage accuracy

±2%

±1%

Output voltage regulation range

±10%

Load adjustment rate

±1%

Linear adjustment rate

±0.5%

Input

Voltage range

85-264VAC 47hz-63hz   (120vdc-370vdc: DC input can be realized by connecting AC / L +, AC / N (-))

Efficiency (typical)

>86%

>88%

>89%

Working current

<2.25A   110VAC   <1.3A 220VAC

Impulse current

110VAC  20A,  220VAC  35A

Start, rise, hold time

500ms,70ms,32ms :110VAC/500ms,70ms,36ms :220VAC

Protect

overload protection

105% - 150% type: protection   mode: automatic recovery after removing the abnormal condition of constant   current mode

Overvoltage protection

When the output voltage is more   than 135%, the output will be turned off. It will recover automatically after   the abnormal conditions are removed

Short circuit protection

+VOWhen the abnormal condition   of output is released, it will recover automatically

Environmental

Working temperature and humidity

-10ºC~+60ºC;20%~90RH

Storage temperature and humidity

-20ºC~+85ºC;10%~95RH

Safety/EMC

Withstand voltage

Input output: 3kVac input   ground: 1.5kVac output ground: 0.5kvac for 1 minute

Leakage current

<1mA/240VAC

Isolation resistance

Input output, input shell,   output shell: 500VDC / 100M Ω

Other

size

60*125*114mm

Net weight / gross weight

0.95/1000g


Ordering Information of Industrial DIN-rail Power supply 240W Series

Model

Description

NDR-240

Industrial DIN-rail Power supply, 240W
