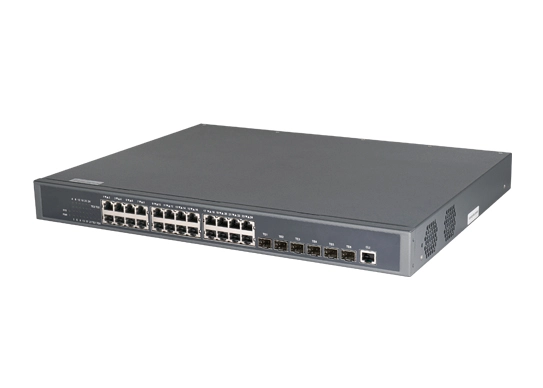

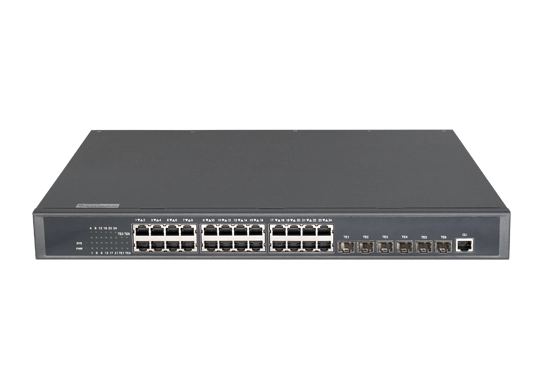

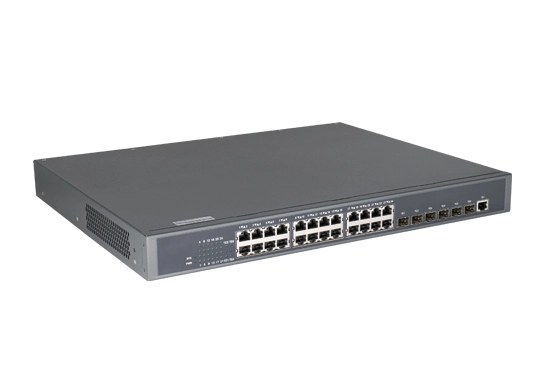

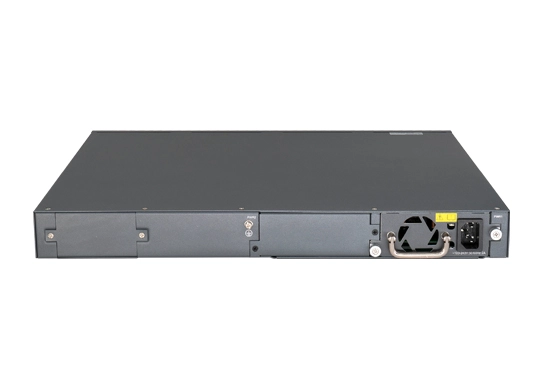

L3 Managed 6-Port 10G SFP + 24-Port 1G Electrical Switch

Fibridge F3S900TX-246 series managed switch is a high-performance Ethernet access equipment developed by Beijing Fibridge. It provides 24*100/1000Mbps electrical Ethernet ports and 6*10Gbps optical ports.

With corresponding network management software, it can realize the management functions such as Port Status Query, port configuration, configuration download, upload, system log and alarm record display.

The series is layer3 switch, can be embedded with management module, providing Console and ethernet two types of management ports, supporting Console,WEB,Telnet and SNMP management methods.

The device is built-in power module, providing 220VAC power supply for options, supporting PoE.

With 5 fans, the switch's working temperature is  -10ºC~+50ºC, humidity is 10%~90%(no condensation). The series is compact desktop design, small size, light weight, easy to place in desktop or cabinet.


L3 Managed 6-Port 10G SFP + 24-Port 1G Electrical PoE Switch Specification


Network Characteristics
Ethernet ProtocolIEEE802.3/802.3u/802.3x/802.3Z/802.3AB store-and-forward
Flow controlIEEE802.3x flow control, Back pressure flow control
PortsOptical Port: 1000MBase-FX, 10GBase-FX SM/MM SC/FC/SFP optional
Electrical Port: 10/100/1000MBase-T(X) auto-adapt Ethernet RJ45 connector
VLAN802.1Q standard VLAN
MAC Adress32K/64K
Jumbo frameMax 12K Jumbo frame
Cache64MB
Switch Capacity598G/5.98T
Packet Forwarding Rate252Mpps/342Mpps
ManagementWeb, SNMP V1/V2/V3, Console, Telnet
Optical Characteristics
Optical ConnectorSC/FC/SFP optional
Fiber coresSingle / Dual core transmission
Wavelength1310nm/1550nm(850nm)
Fiber modeSingle Mode / Multimode
Environmental Characteristics
Temperature & HumidityWorking temperature: -10℃~50℃
Storage temperature: -40℃~75℃
Working humidity: 10%~90% RH No condensation
Storage humidity: 5%~90% RH No condensation
PowerAC 100-240V/50-60Hz embedded switch power,
DC-36~-72V external DC power
MTBF≥100000 H
Mechanical Characteristics
Power dissipation≤30W, PoE: 370W


 L3 Managed 6-Port 10G SFP + 24-Port 1G Electrical PoE Switch Features

  • Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.1p store-and-forward.

  • MAC Static configuration and dynamic learning, IEEE802.1AE Macsec security control.

  • Support VLAN, GVRP, QinQ, voice VLAN.

  • Support STP/RSTP/MSTP/EAPS/ERPS.

  • Support IGMPv1/2/3 and MLDv1/2 Snooping.

  • Support MCE function.

  • Support IPv4/IPv6.

  • Support static routing, RIP, OSPF, BGP, IS-IS dynamic routing, Policy-based-routing.

  • Support Equal-Cost Multi-path Routing to meet Liability equilibrium.

  • Support manual tunnel, ISATAP tunnel, 6to4 tunnel.

  • Support LDP protocol, MPLS VPN.

  • Support DHCP.

  • Support L2/L3/L4 ACL, IPv4/IPv6 ACL, VLAN ACL.

  • Support QoS, flow classification, CAR flow restriction/monitor/shape, DSCP.

  • Support safe visit control, prevent DDosSupportRADIUS/TRCACS+.

  • Support port isolation, port security, IP+MAC+ port bunding.

  • SupportIEEE802.1X certified.

  • Support uRPF.

  • Support static/LACP link aggregation, UDLD, OAM, ISSU.

  • Support ZTP non-contact configuration, Web/Console/Telnet/SSH2.0.

  • Support SNMP V1/V2.V3.

  • Support TFTP upload and download management.

  • Support RMON.

  • Obtain ISO9000 quality system certificate.

  • Pass the ministry of public security testing.

  • Obtain network qualification certificate.
