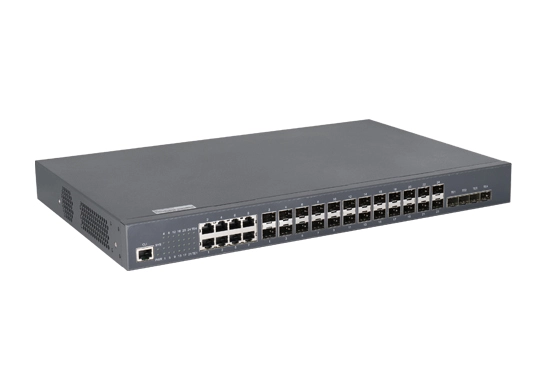

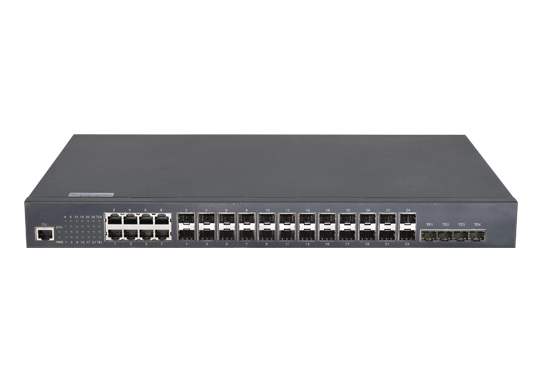

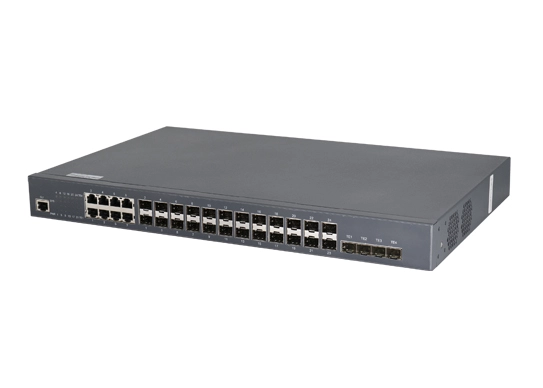

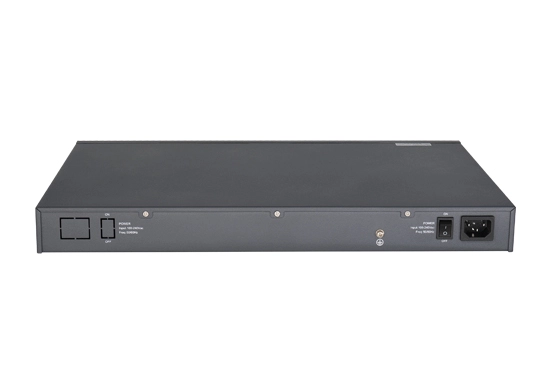

L3 Managed 4 10G OPT and 24 Giga OPT and 8 Giga Combo Switch F2S900SCTX-2484

Fibridge F2S900SCTX-2484 series network switch is a high-performance Ethernet access Managed equipment developed by Beijing Fibridge. It has 24* 10/100/1000 Base-Fx interface and 4* 10Gigabit FX ports, as well as 8*1000M Combo ports.

With corresponding network management software, it can realize the management functions such as Port Status Query, port configuration, configuration download, upload, system log and alarm record display.

The series is layer 3 switch, can be embedded with management module, providing Console and Ethernet two types of management connectors, supporting Console, WEB, Telnet and SNMP management.

The device is built-in power module, you can choose 220V AC input or 12V DC input.The F6 series is compact desktop design, small size, light weight, easy to place in the desktop or cabinet. The series' working temperature is 0ºC to +50ºC,10%~90(no condensation).

L3 Managed 4 10G OPT and 24 Giga OPT and 8 Giga Combo Switch F2S900SCTX-2484 Specification

Network Characteristics
Ethernet ProtocolSupport 802.3/802.3u/802.3x/802.3Z/802.3AB storage-and-forward
Flow ControlIEEE802.3x flow control, back pressure flow control
Network InterfaceOptical port: 1000MBase-FX, 10GBase-FX SM/MM,  SC/FC/SFP
Electrical port: 10/100/1000MBase-T(X) auto adaptive RJ45
VLAN802.1q VLAN
MAC Addresses16K
Jumbo FrameMax 12K0
Cache64MB
Packet Buffer336Gbps/3.36Tbps
Packet Forwarding Rate128Mpps
ManagementWeb, SNMP V1/V2/V3, Console, Telnet
Optical Characteristics
Optical InterfaceSC/FC/SFP(Optional)
Fiber Core CountSingle / Dual core transmission
Wavelength1310nm/1550nm(850nm)
Fiber ModeSingle Mode / Multimode
Environmental Characteristics
Temperature & HumidityWorking temperature: -10ºCto +50ºC
Storage temperature: :-40ºC to 75ºC
Working humidity:10%~90% RH No condensation
Storage humidity: 5%~90% RH No condensation
Altitude: 3000 meters
PowerAC 100-240V/50-60Hz embedded switch power
DC-36~-72V external DC power
MTBF≥100000 hours
Mechanical characteristics
Dimension440×280×44mm
Weight3.6kg
Power consumption≤40W


L3 Managed 4 10G OPT and 24 Giga OPT and 8 Giga Combo Switch F2S900SCTX-2484 Features

  • Support IEEE802.3/802.3u/802.3ab/802.3x/802.3az/802.3ad/802.3z/802.3q/802.3q/p/802.1w/802.1d/802.1S/802.1p storage-and-forward

  • MAC static configuration and dynamic learning, IEEE802.1AE Macsec security control

  • Support VLAN, GVRP, QinQ, voice VLAN

  • Support STP/RSTP/MSTP/EAPS/ERPS

  • Support IGMPv1/2/3 and MLDv1/2 Snooping;

  • Support IEEE1588 PTP clock protocol

  • Support IPv4/IPv6

  • Support static routing, RIP, OSPF dynamic routing, VRRP

  • Support DHCP

  • Support L2/L3/L4 ACL, IPv4/IPv6 ACL, VLAN ACL

  • Support QoS,flow classification, CAR flow limit/monitor/shaping, DSCP

  • Support safe visit control, prevent DDos support RADIUS/TRCACS+

  • Support port isolation, port security, IP+MAC+ port bunding

  • Support IEEE802.1Xcertificate

  • Support static/LACP link aggregation, UDLD, OAM, ISSU

  • Support ZTP zero-touch configuration, Web/Console/Telnet/SSH2.0

  • Support SNMP V1/V2.V3

  • Support TFTP upload and download management

  • Support RMON

  • Obtain network qualification certificate


Ordering Information of L3 Managed 4 10G OPT and 24 Giga OPT and 8 Giga Combo Switch F2S900SCTX-2484

Model

Port

Management
F2S900SCTX-2484

24*10/100/1000MBase-FX SFP
8*10/100/1000MBase-T(X) Combo ports
4*10G SFP+

Web, SNMP V1/V2/V3, Console, Telnet
